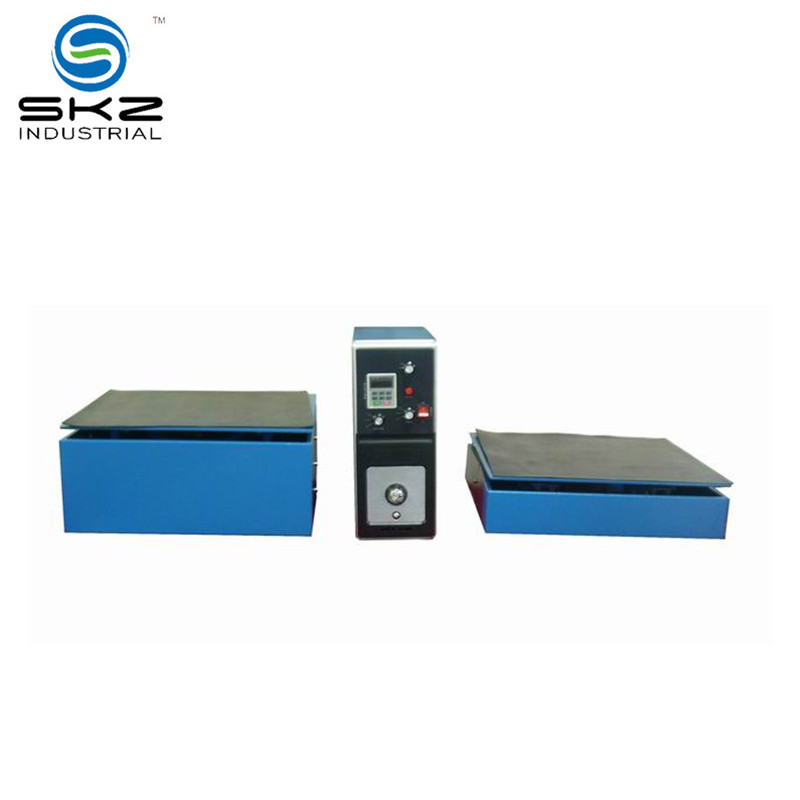

SKZ126D Electromagnetic Vibration Tester
Description
1. 4-Axis Comprehensive Vibration
2. Integrated 4-directional vibration (up/down + left/right);
same high-performance specs as 126C;
3.most thorough simulation of multi-directional vibration environments;
4. suitable for complex product reliability validation..
This advanced 4-axis vibration tester delivers comprehensive multi-directional vibration simulation with upgraded structural design and outstanding performance, ideal for high-standard product reliability testing in professional laboratories and industrial quality control workshops.
It features integrated four-directional vibration functions, covering up-down and left-right vibration movements. Retaining the same premium high-performance specifications as the classic 126C model, the equipment ensures stable output, consistent test performance and reliable detection accuracy while achieving multi-dimensional testing upgrades.
Capable of reproducing complex multi-directional vibration environments, the device realizes the most thorough and realistic vibration simulation. It accurately restores the comprehensive vibration impacts that products undergo during transportation, handling and actual service conditions, avoiding one-sided test results caused by single-direction simulation.
Tailored for high-difficulty testing scenarios, this 4-axis vibration tester is perfectly suitable for complex product reliability validation. It effectively detects potential structural defects, loose components and anti-vibration performance flaws of sophisticated products. It helps manufacturers optimize product structural design, enhance environmental adaptability and ensure long-term operational stability of finished products.
Specifications
| Vibration direction | up/down, left/right (integrated vibration) |
| Platform body size | 500*500mm |
| Maximum test load | 100kg |
| Vibration machine power | 2.2KW |
| Supply voltage | 220V ± 20% |
| Time control | Any time can be set (seconds) |
| Maximum current | 10A |
| Amplitude | 0 to 5 mm |
| Maximum acceleration | 0 ~ 20g |
| Accuracy | Displayed to 0.01Hz, 0.1Hz precision |
| FM function | 1 ~ 600HZ, 15 segments multiples |
| low to high frequency | |
| High frequency to low frequency | |
| Low to high and then low frequency / can be recycled | |
| Sweep function | 1 ~ 600HZ, can be arbitrarily set |
| Programmable Function | 1 ~ 600HZ, 15 segments each can be set |
| Logarithmic function | 1 ~ 600HZ |
| Lower frequency to the upper frequency | |
| Upper frequency to lower frequency | |
| lower frequency to the upper frequency, then lower | |
| 3 modes logarithmic frequency / can be recycled | |
| Vibration wave forms | sine wave (half-wave / full-wave) |
| Time control | 1 second to 30 days can be set (seconds) |
| Maximum exciting force | 2000kgf |
| Noise | 60 db or less |
| Working condition | -10 ℃ ~ 60 ℃, 10% ~ 95% |
