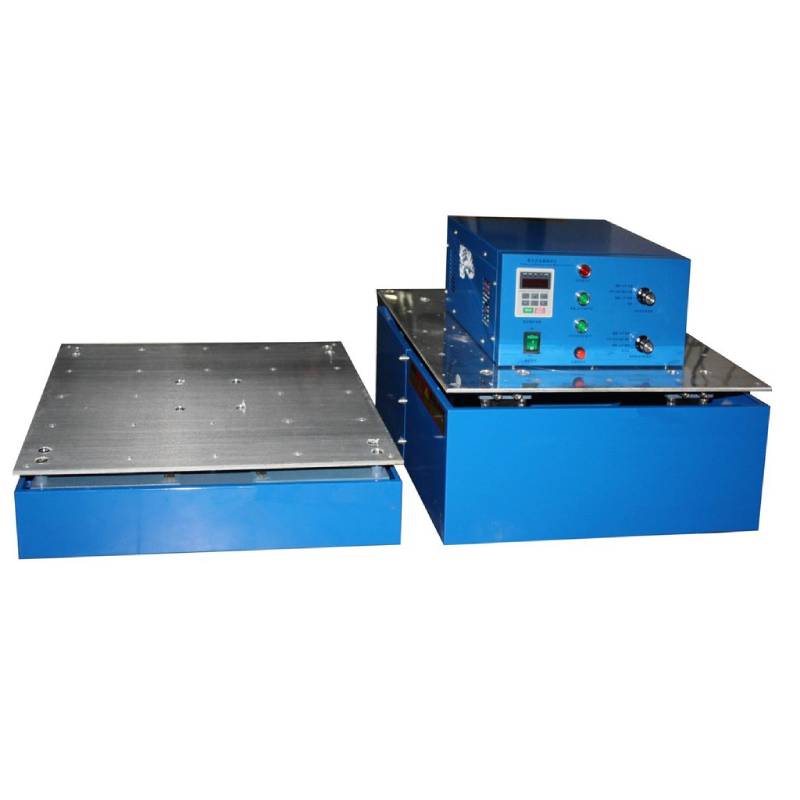

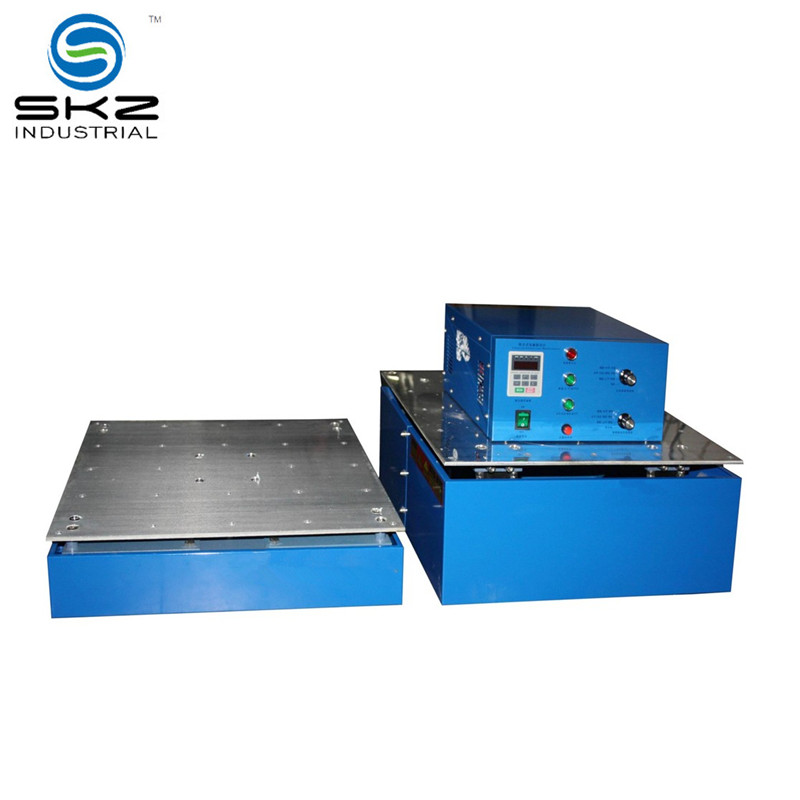

SKZ126C Electromagnetic Vibration Tester
Description
1. Dual-Axis Precision Testing
2. Vertical + horizontal vibration coverage;
3. Wide frequency range (1–600 Hz) with adjustable amplitude (0–5 mm);
4. advanced modes: FM, sweep, programmable 15-segment, logarithmic;
5. ideal for component durability and resonance analysis..
This high-performance vibration testing machine features professional dual-axis precision testing capability, delivering accurate and comprehensive vibration simulation for industrial quality inspection and experimental analysis. It is specially optimized for component durability verification and resonance detection scenarios.
Supporting both vertical and horizontal vibration coverage, the device realizes multi-directional vibration simulation. It fully reproduces complex vibration environments encountered during product transportation and service, making test conditions closer to real application scenarios and ensuring reliable and persuasive test data.
Equipped with ultra-wide adjustable parameters, it covers a frequency range from 1 Hz to 600 Hz and an adjustable amplitude of 0 mm to 5 mm. The flexible parameter configuration meets diverse testing standards and customized experimental demands, adapting to vibration tests of different precision levels and product specifications.
It integrates multiple advanced testing modes, including frequency modulation, fixed sweep, programmable 15-segment and logarithmic sweep modes. Rich intelligent modes support diversified and systematic vibration testing processes, enabling users to conduct targeted experimental verification according to different product characteristics and testing standards.
Focused on high-precision experimental analysis, this tester is perfectly ideal for component durability assessment and professional resonance analysis. It effectively helps enterprises and laboratories detect structural hidden troubles, verify product stability, optimize structural design and improve overall product reliability.
Specifications
| Vibration direction | vertical, horizontal |
| Platform body size | 500*500mm |
| Maximum test load | 100kg |
| Vibration machine power | 2.2KW |
| Supply voltage | 220V ± 20% |
| Time control | Any time can be set (seconds) |
| Maximum current | 10A |
| Amplitude | 0 to 5 mm |
| Maximum acceleration | 0 ~ 20g |
| Accuracy | Displayed to 0.01Hz, 0.1Hz precision |
| FM function | 1 ~ 600HZ, 15 segments multiples |
| low to high frequency | |
| High frequency to low frequency | |
| Low to high and then low frequency / can be recycled | |
| Sweep function | 1 ~ 600HZ, can be arbitrarily set |
| Programmable Function | 1 ~ 600HZ, 15 segments each can be set |
| Logarithmic function | 1 ~ 600HZ |
| Lower frequency to the upper frequency | |
| Upper frequency to lower frequency | |
| lower frequency to the upper frequency, then lower | |
| 3 modes logarithmic frequency / can be recycled | |
| Vibration wave forms | sine wave (half-wave / full-wave) |
| Time control | 1 second to 30 days can be set (seconds) |
| Maximum exciting force | 2000kgf |
| Noise | 60 db or less |
| Working condition | -10 ℃ ~ 60 ℃, 10% ~ 95% |
