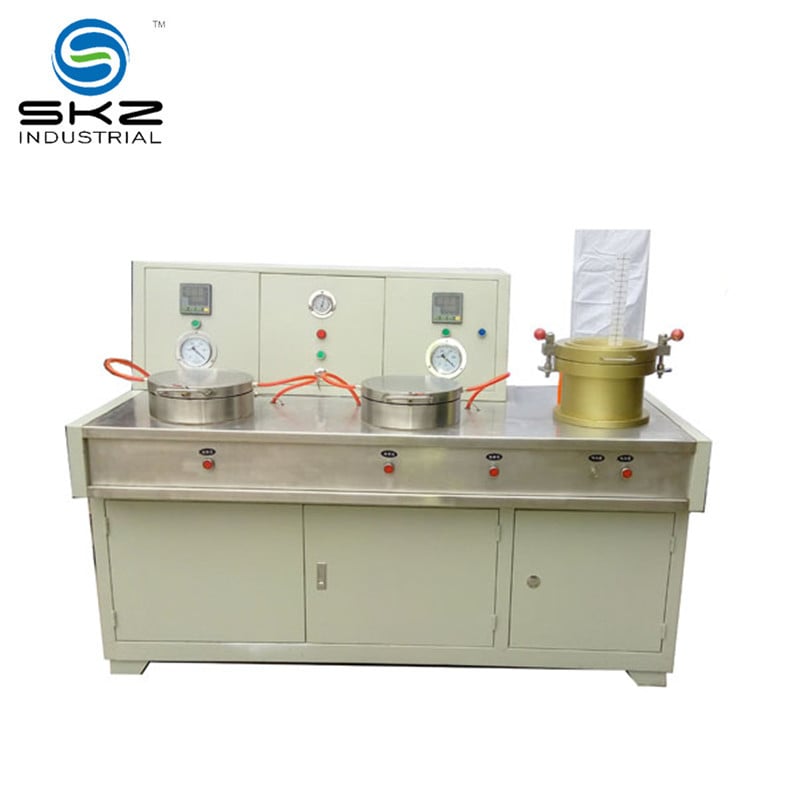

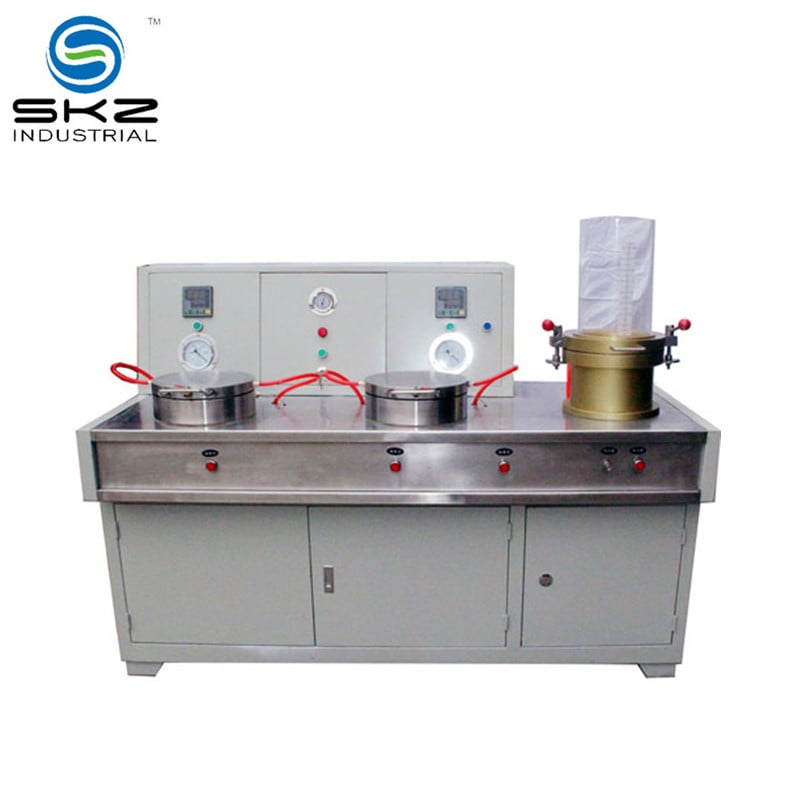

SKZ125 Rapid-kothen Sheet Former
Description
1. It contains one paper-making equipment and t
wo drying equipment.
2. Mainly composed by dryers, vacuum pumps, and sheet former (press)
3. Sheet former parts: power-driven drain off water, white water cycle use, power-driven feed water, aerodynamic homogenate ( also can manual homogenate), Water molding or vacuum pump suction molding
4. Dry parts adopt vacuum heating and drying, vacuum pump adopts water cycle, heating element use heating plate, temperature control system, and has a short circuit, disconnection, and automatic over-temperature alarm function, with a stop anti-oil return..
This integrated pulp testing unit combines one set of papermaking equipment and two sets of drying equipment, serving as an all-in-one solution for laboratory pulp sheet forming and drying procedures. Mainly composed of dryers, vacuum pumps and motor-driven sheet former presses, it realizes standardized and automated pulp sample preparation with compact and functional integration.
The professional sheet former supports diversified automatic and manual operations. It features power-driven drainage, circulating white water utilization and motor-controlled water feeding. Equipped with aerodynamic homogenizing function with optional manual homogenation, the device allows flexible pulp dispersion. It enables dual molding modes including water-based forming and vacuum suction forming, adapting to various pulp sample making requirements.
The drying system adopts efficient vacuum heating drying technology for uniform and rapid dehydration. The matched vacuum pump applies water circulation operation for stable and low-consumption working performance. With high-quality heating plates and precise temperature control systems, the unit maintains stable heating conditions throughout the drying process.
Built with comprehensive safety protection mechanisms, the machine is equipped with short-circuit, open-circuit and over-temperature automatic alarm functions. It also features an anti-oil return stop device to effectively avoid equipment failure and extend service life. Reliable, safe and fully automatic, this multi-functional unit is ideal for standardized pulp sample preparation in paper research laboratories and production quality testing.
Specifications
| Sample Dia | ≦200mm |
| Dry Dia | Φ200mm |
| Height of vacuum pump | -0.06 ~ -0.09MPa |
| Sucking rate of vacuum pump | 60CBM/H. (water cycle) |
| Drying Temp | 95℃-120℃ |
| Drying time | (GSM 30-85g/㎡): 3~5Minutes |
| Compressor | 2P |
| Heating power | 1.5KW×2 |
| Dimension | 1700mm×700mm×1200mm |
| Weight | 300KG |
