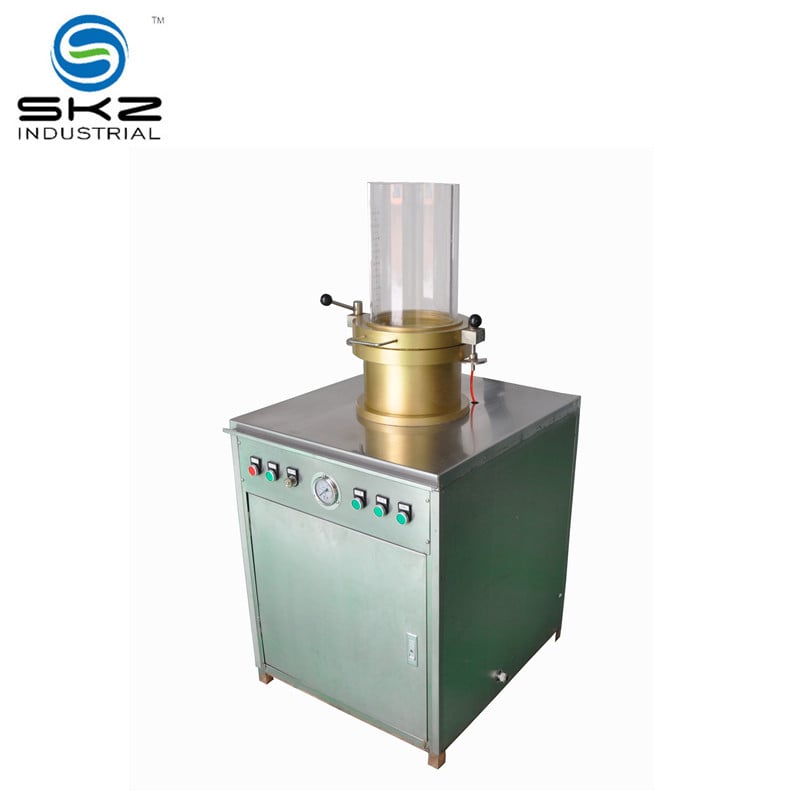

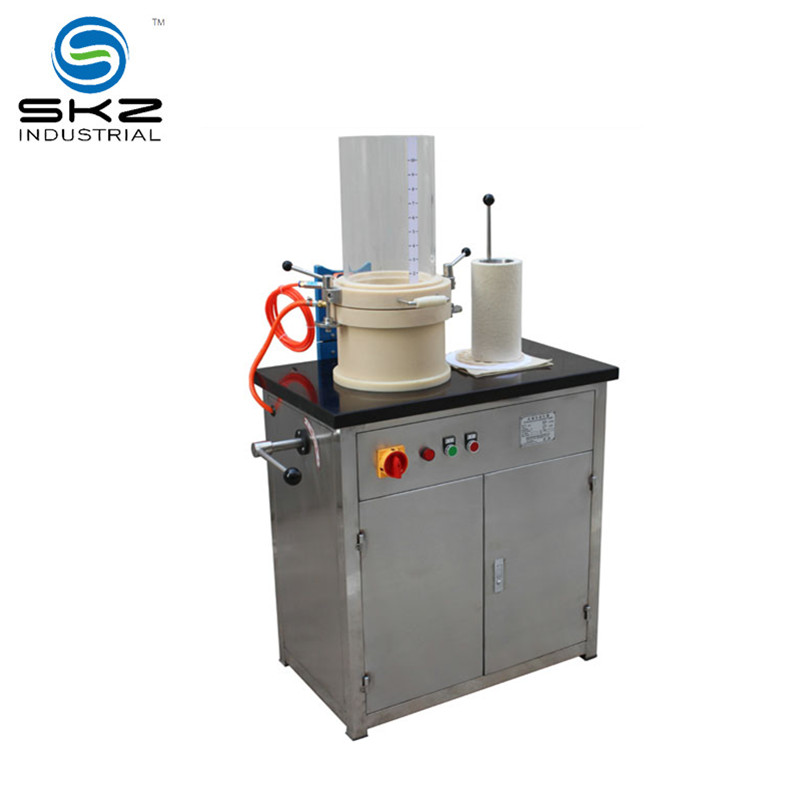

SKZ124B Freeness Tester
Description
1. Automatic type
2. Electromagnetism valve drain automatically, mini-type vacuum system, up and down water circulative system, air bubble smooth pulp system..
This fully automatic CSF pulp freeness tester upgrades traditional manual testing workflows with intelligent and integrated mechanical systems, delivering stable, efficient and precise pulp drainage performance detection for pulp factories and research laboratories.
Adopting a full automatic design, the device greatly reduces manual intervention and operational errors to ensure standardized and repeatable test procedures. It features an electromagnetic valve that realizes fully automatic drainage, replacing conventional manual draining operations and simplifying the entire testing process.
Equipped with a mini vacuum system, the tester maintains stable internal pressure during testing to guarantee consistent test conditions. Its built-in up-and-down circulating water system ensures uniform water circulation and temperature stability, further improving the accuracy and stability of freeness measurement results.
The integrated bubble smoothing pulp system effectively eliminates air bubbles inside pulp samples, avoiding detection deviations caused by uneven pulp dispersion and air inclusion. This professional design ensures uniform pulp distribution and authentic, reliable test data that fully complies with standard testing requirements.
With integrated automatic drainage, stable vacuum operation, circulating water supply and bubble smoothing functions, this all-round automatic tester realizes one-click standardized testing. It is ideal for mass production quality control and professional pulp research, significantly boosting laboratory testing efficiency and data consistency.
Specifications
| Canister diameter | 200mm |
| Canister capacity | 8L |
| Power | 463W |
| Dimension | 500mm×600mm×1300mm |
