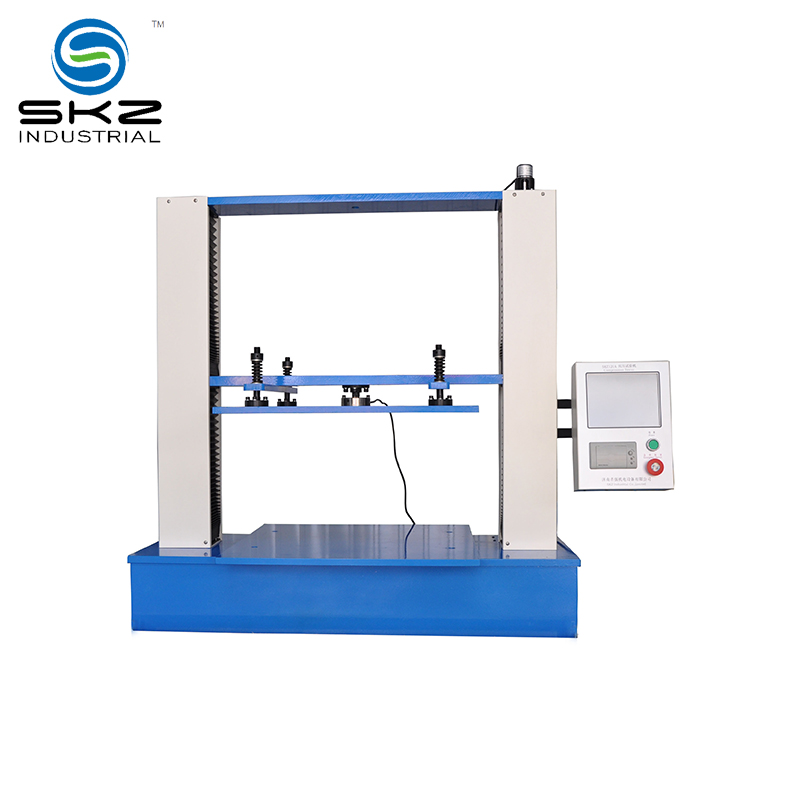

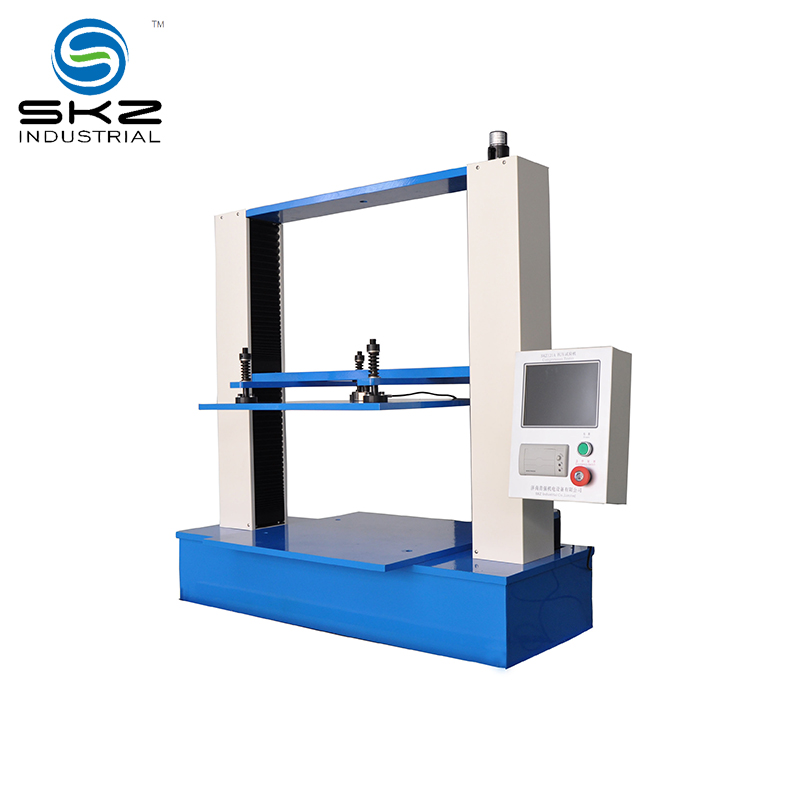

SKZ121A/B/C Box Compression Tester
Description
1. Compression, stacking (12h/24h), and pressure standard tests in one unit.
2. ±1% accuracy, 0.1mm deformation resolution with advanced sensors & motor.
3. Built-in storage, display, statistics, and printing functions.
4. Overload protection, multi-level safety features, auto-return after testing.
5. Multiple load capacities (10/20/50KN) and working sizes (600–1200mm)..
This all-in-one compression testing machine integrates compression, 12h/24h stacking and standard pressure tests in a single unit, eliminating the need for multiple devices. It fully meets routine packaging and material pressure resistance tests, covering instant compression detection and long-duration stacking aging tests to support comprehensive quality evaluation.
Powered by advanced sensors and high-performance motor, the tester delivers exceptional testing precision. It achieves ±1% testing accuracy and ultra-fine 0.1mm deformation resolution, accurately capturing subtle structural changes and deformation data of test samples. This reliable precision ensures consistent and credible test results for strict quality control standards.
Equipped with complete data management functions, the device supports real-time data display, automatic data storage, intelligent statistics and on-site printing. It enables full-process data recording and result output, facilitating experimental analysis, data archiving and standardized lab traceability with highly efficient one-stop operation.
Designed with comprehensive safety and automatic functions, the machine features overload protection and multi-level safety mechanisms to prevent equipment damage and ensure stable operation. It automatically returns to the original position after each test, reducing manual operation and improving continuous testing efficiency.
Boasting flexible customized specifications, it provides multiple load capacities of 10KN, 20KN and 50KN, with adjustable working sizes ranging from 600mm to 1200mm. Such diverse configurations adapt to different material sizes and testing requirements, making it ideal for factories and professional quality laboratories.
Specifications
| Load Strength | 10KN, 20KN, 50KN |
| Working size | 600MM, 800MM, 1000MM, 1200MM |
| Speed | 1-60mm/min |
| Accuracy | ±1% |
| Deformation resolution | 0.1mm |
| Power | AC220V, 50HZ, 3A, 750W |
| Resolving power minimum reading figure | 1N |
| Relative error of display figure | ±2% |
| Relative alteration degree of display error | ≤2% |
| Result error | 0.1% |
| Surveying veracity of tracking distortion | ±0.1mm |
| Speed range of different pressure | (1~40)mm/min |
| Returning speed | (1~60) mm/min |
| Relative waving speed of stacking test | ±4% |
| Tracking and pressure speed of stacking | 2mm/min |
