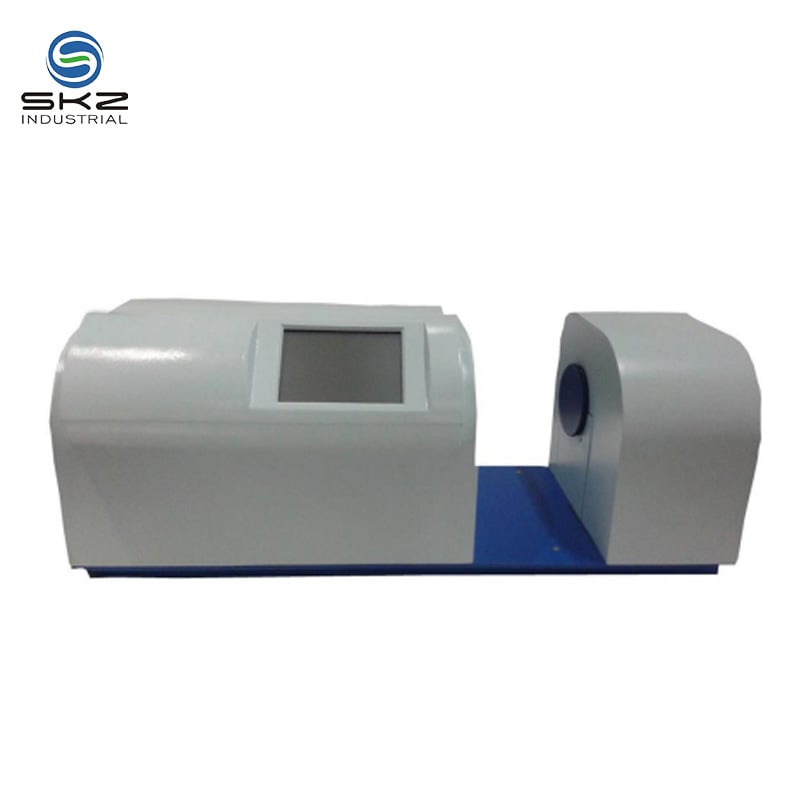

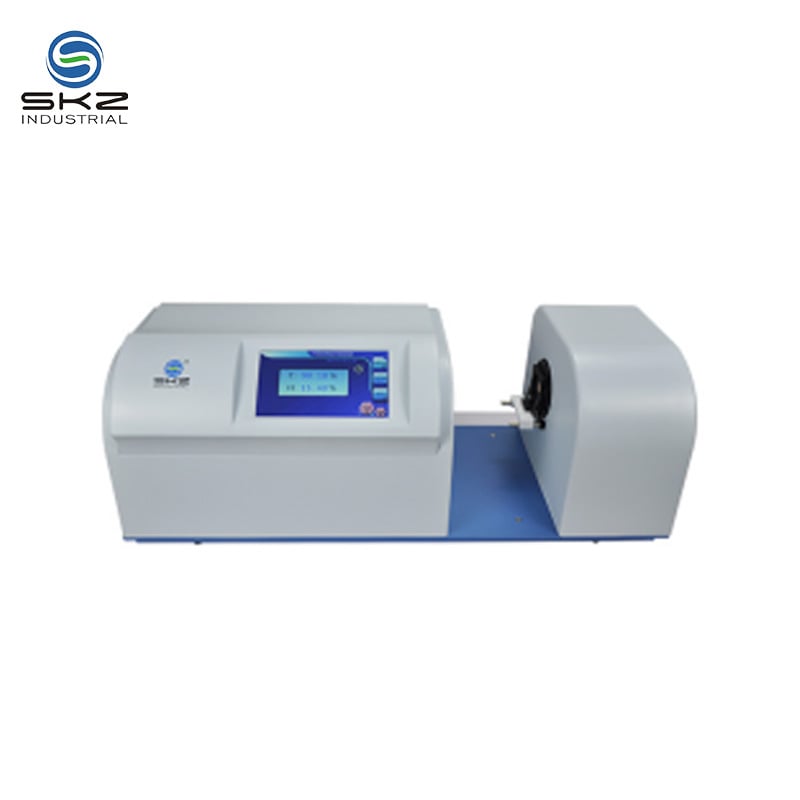

SKZ120BC Fully Automatic Haze Meter
Description
SKZ120BC
Fully automatic haze & transmittance measurement
Complies with ASTM D1003 and JIS K7136 standards
Touch-screen with USB and U-disk storage
Modulator design, no darkroom required
Supports solid, film and liquid samples
Equipped with professional PC software (optional)
1. 【Dual Standard Compliance】 SKZ120BC fully automatic haze meter strictly conforms to ASTM D1003-61 and JIS K7136-2000 standards, ensuring reliable and internationally recognized measurement results for quality control and R&D applications.
2. 【Professional Optical System】 Adopts parallel illumination with hemispherical scattering and photoelectric integrating sphere receiving mode, providing high-precision haze and transmittance measurement for various transparent and semitransparent materials.
3. 【High Accuracy & Repeatability】 Delivers transmittance accuracy ≤1%, haze accuracy ≤±0.1% (when haze ≤0.5%) and ≤±0.3% (when haze 0.5%), with excellent repeatability of 0.05% (haze ≤0.5%) and 0.1% (haze 0.5%), ensuring consistent and reliable test data.
4. 【Touch-Screen with Data Storage】 Equipped with a large LCD touch-screen for intuitive operation. Features USB interface and U-disk storage function, capable of storing up to 2000 groups of data for convenient data management and export.
5. 【Modulator Design, No Darkroom Required】 Built-in modulator effectively eliminates interference from ambient light, allowing the instrument to operate accurately in normal laboratory lighting conditions without the need for a darkroom, greatly improving testing convenience.
6. 【Versatile Sample Support】 Comes with film magnetic clamps and liquid sample cups, supporting measurement of solid samples (50mm×50mm), film samples (50mm×50mm), and liquid samples (water, beverages, pharmaceuticals, coloring liquids, grease, etc.), offering great flexibility for different applications.
7. 【Optional PC Software Control】 Equipped with specialized software for computer-controlled operation (optional), enabling automated testing, data analysis and report generation for enhanced workflow efficiency.
8. 【Three Light Source Options】 Supports C light source (6774K) and A light source (2856K) — SKZ120B model comes with C light source standard, providing flexible illumination choices for different material testing requirements.
9. 【Wide Application Range】 Ideal for determining transmittance, haze and reflectivity of transparent and translucent parallel flat objects including plastic plates, sheets, films, glass, as well as turbidity testing of liquids in food, beverage, pharmaceutical and chemical industries.
Specifications
| SK2120A | SK2120B | SK2120C | |
| Light Source | CIE-A,CIE-C,CIE-D65 | C light (6774K) | C light(6774K) , A light(2856K) |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08 | ASTM D1003-61 and JIS K7136-2000 | |
| Measuring range | 0-100% | Transmittance 0% - 100.0%Haze 0% -30.00% | Transmittance 0% -100.0%Haze 0% -30.00% |
| Applied range | Designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. | Applied to determine the transmittance, haze, reflectivity of transparent, translucent parallel flat objects ( Plastic plates, sheets, plastic film, glass), and also can determine the turbidity of some liquid (Water, beverage, pharmaceutical, coloring liquid, grease) | |
| Advantages |
1.It adopts LED light source whose lifetime can reach 10 years. 2.No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.3.Small size and light weight which makes it much easier to carry. 4.It can realize transmittance compensation measurement which can provide higher accuracy test result. |
1. Receive mode: parallel illumination hemisphere scattering, photoelectric integrating sphere. 2. Touch-screen operation, with a USB interface, data storage (2000 groups) and U disk storage function. 3. Equipped with specialized software, computer-controlled operation (optional) 4. Displayed directly to: Transmittance 0.01%, 0.01% haze. 5. Using the modulator, the instrument no longer subject to the influence of ambient light, do not use the darkroom, to ensure the accuracy of the large sample measurement. 6. With film magnetic clamps, liquid sample cup, giving users great convenience. |
|
