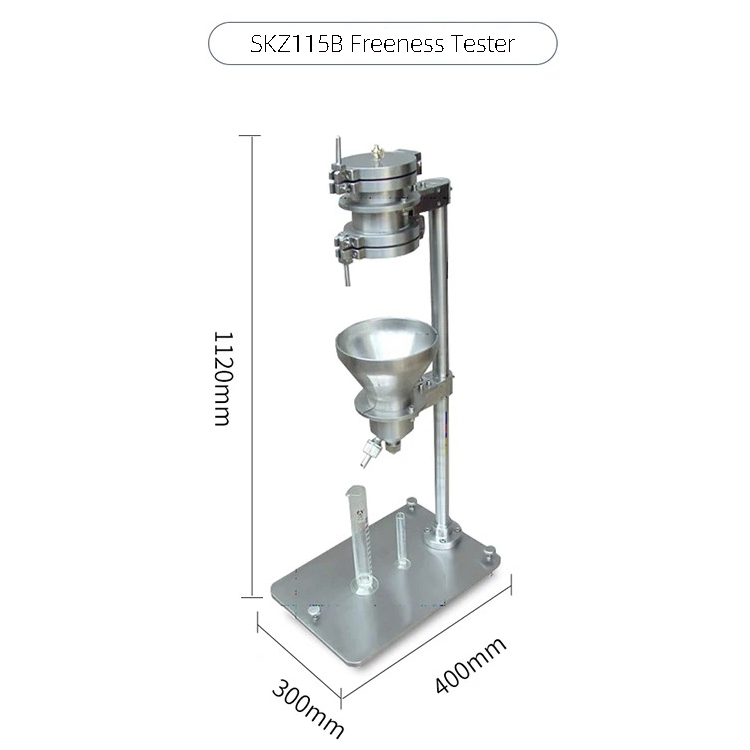

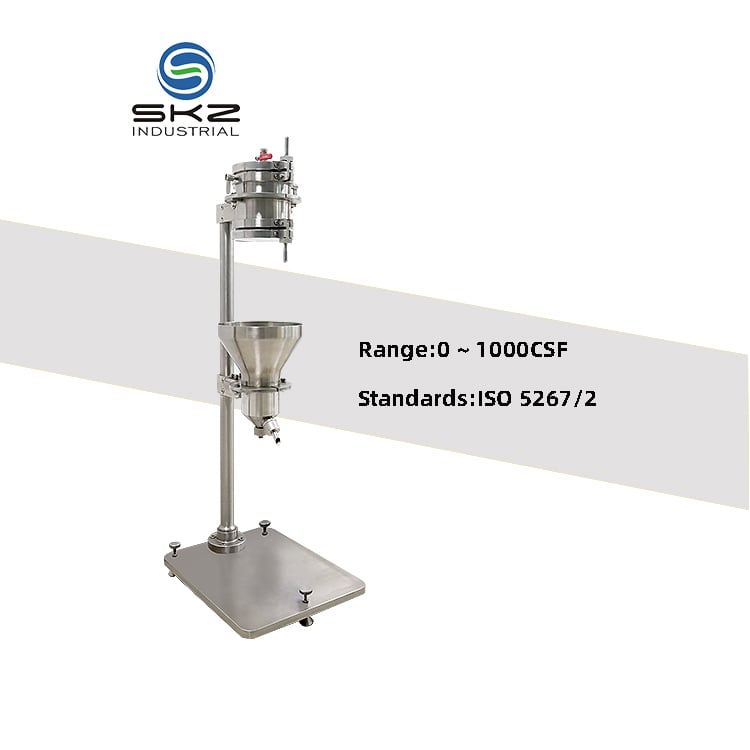

SKZ115B Freeness Tester
Description
1. Measures 0–1000 CSF (Canadian Standard Freeness) value, evaluates drainage performance of wood, mechanical & groundwood pulp
2. 304 stainless steel build, equipped with standard screen plate and Plexiglas measuring cylinder for direct CSF reading.
3. Self-calibration can be realized
4. Suitable for mass production & pulp research labs.
This professional CSF pulp freeness tester is specially designed for accurate pulp drainage performance evaluation, complying with Canadian Standard Freeness testing requirements. It delivers stable and repeatable test results for both industrial production control and laboratory pulp research.
Capable of measuring a full 0–1000 CSF value range, the instrument accurately assesses the drainage performance of various pulp types, including wood pulp, mechanical pulp and groundwood pulp. Its wide testing coverage meets diverse freeness detection demands, supporting comprehensive pulp performance analysis for different raw materials.
Constructed with premium 304 stainless steel, the machine features sturdy structure, excellent corrosion resistance and long service life. Fitted with a standard screen plate and transparent Plexiglas measuring cylinder, it enables direct and intuitive CSF value reading without complicated conversion, simplifying operation and improving testing efficiency.
The device supports automatic self-calibration functions to maintain long-term testing accuracy. It effectively eliminates systematic deviation caused by environmental changes or long-term operation, ensuring consistent and reliable test data for every measurement and reducing daily maintenance workload.
With standardized testing performance and user-friendly design, this CSF freeness tester is perfectly suitable for mass production quality inspection in pulp factories and professional experimental analysis in pulp research laboratories. It serves as a reliable essential testing device for pulp property evaluation and product quality stabilization.
Specifications
| Product Name | Pulp canadian standard freeness tester with factory price |
| Material | SS304 |
| Measuring range | 0 ~ 1000CSF |
| Cylinder inner diameter | 110±0.2ml |
| Total height of cylinder | 190±0.2ml |
| Main conical container tilt | 29°±5 |
| Screen mesh aperture | 0.50mm diameter |
| Calibration mode | Self-calibration can be realized |
| Dimensions (LxHxD) | 900×1120×400mm |
| Net weight | 60KG |
