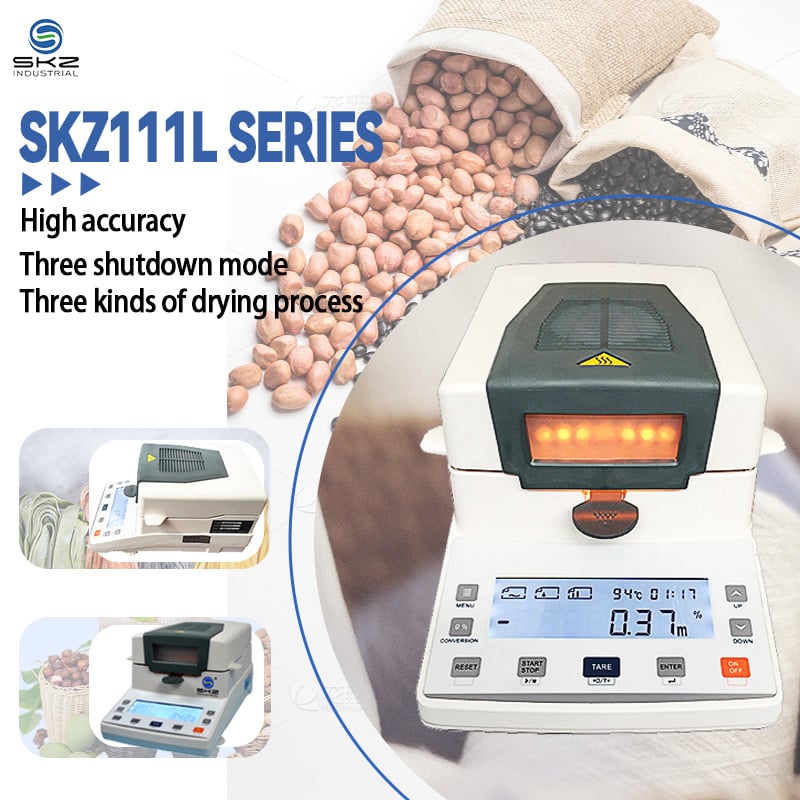

SKZ111L10 SKZ111L-5 SKZ111L-2 SKZ111L-1 Halogen Moisture Analyzer
Description
1. High-precision halogen moisture analyzer
2. Fast sensitive weighing sensor
3. Range 0-100%
4. Resolution: 10mg/5mg/2mg/1mg (optional)
5. Readability: 0.2%/0.1%/0.04%/0.01% (optional)
6. Three drying modes: Standard/Slow/Fast
7. Auto/Manual/Timed shutdown
8. 100g calibration weight included
9. Ergonomic handle & pan design
10. Halogen lamp heating
11. RS-232 interface
12. 90mm large weighing pan
13. LCD display
14. Net weight 6kg
15. Dimensions 200×180×380mm
16. 1-year warranty
1. 【High-Precision Halogen Moisture Analyzer】Fast sensitive weighing sensor and halogen lamp heating system – full-range moisture detection.
2. 【0-100% Full Range Coverage】Measuring range covers 0%~100% – suitable for trace to high-moisture samples.
3. 【Four Resolution Options, Max 0.01% Accuracy】Four resolution options: 10mg/5mg/2mg/1mg – max readability 0.01%.
4. 【Three Drying Modes, Flexible Adjustment】Three drying modes: Standard, Slow and Fast – adjustable heating rate for different materials.
5. 【Three Shutdown Modes, Convenient Operation】Supports Auto, Manual and Timed shutdown modes – meets different experimental needs.
6. 【100g Calibration Weight Included】100g standard calibration weight included – on-site calibration ensures long-term accuracy.
7. 【Ergonomic Handle Tray, Anti-Scald Design】Ergonomic handle tray design – easy sample loading/unloading with anti-scald protection.
8. 【Halogen Lamp Uniform Heating】Halogen lamp provides uniform, stable heating without local hot spots – ensures drying uniformity.

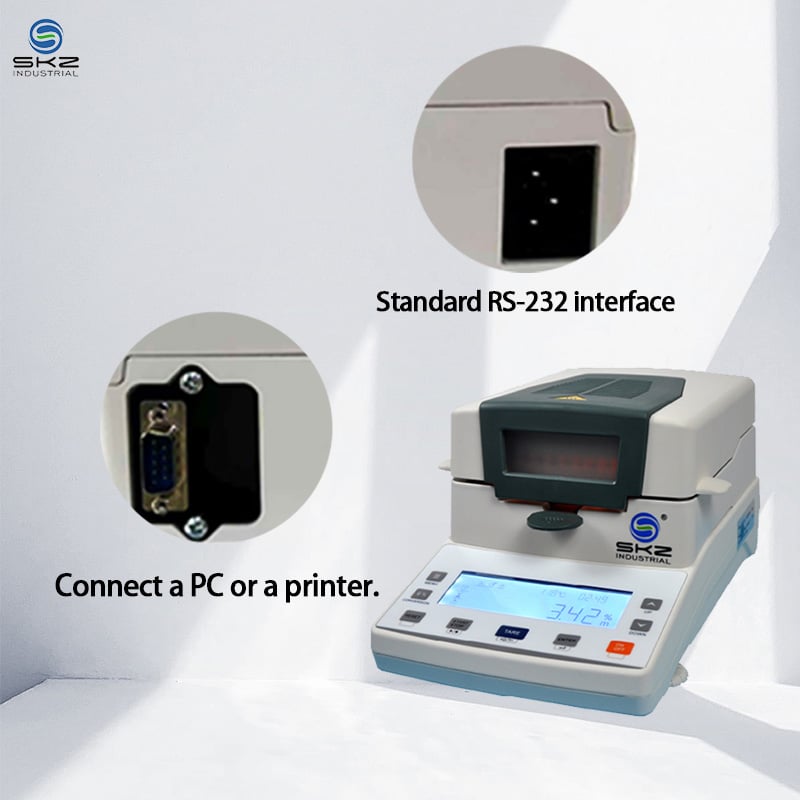

9. 【RS-232 Interface, Data Export Supported】Standard RS-232 interface – connects to PC or printer for data export and report printing.
10. 【90mm Large Weighing Pan】90mm large weighing pan – larger sample area for better representativeness.
11. 【LCD HD Display】LCD HD display – clear and intuitive data reading.
12. 【Stable Structure, Space-Saving】Net weight 6kg, dimensions 200×180×380mm – stable and space-saving.
13. 【1-Year Warranty】1-year warranty – after-sales protection.
14. 【Fast Sensitive Weighing Sensor】Fast sensitive weighing sensor – rapid response and accurate data.
15. 【Suitable for All Kinds of Materials】Suitable for all kinds of materials – wide application range.
16. 【Net Weight 6kg】Net weight 6kg – stable placement, safe for lab use.
Specifications
| Model | SKZ111L-10 | SKZ111L-5 | SKZ111L-2 | SKZ111L-1 |
| Specification | 110g/10mg | 110g/5mg | 110g/2mg | 110g/1mg |
| Readability | 10mg | 5mg | 2mg | 1mg |
| Moisture range | 0.0%-100% | 0.00%--100% | ||
| Moisture Readability accuracy | 0.2% | 0.1% | 0.04% | 0.01% |
| Dry residual range | 100.00%—0.00% | |||
| Dry residual Readability accuracy | 0.2% | 0.1% | 0.04% | 0.01% |
| Pan size | Φ90mm | |||
| Heating mode | Halogen lamp | |||
| Display | LCD | |||
| Temperature sensor | PT-100 | |||
| Temperature Setting | 40℃~199℃ | |||
| Temperature interval | 1℃ | |||
| Working temperature | 5℃~35℃ | |||
| Time Setting | 1~99 minutes | |||
| Automatic shutdown | 0.1%--9.9%within 1 min | |||
| ATRO | 100%-999% | |||
| ATRO | 0%-999% | |||
| History store | 15 groups | |||
| Power supply | 220V | |||
| Heater | 220V±15%50Hz, 115V±15%, 400W | |||
| Balance | External power, Output: 9V, input: 220V±15%, 50Hz | |||
| Calibration mode | External calibration with provided poise 100g | |||
| Connect output | RS232 | |||
| Dimensions(WLH) | 200*180*300mm | |||
| Weight | 6kg | |||
| Optional with extra charge | Printer, moisture regain (R) | |||
Packing List
| Standard | Quantity | Remark |
| Moisture Meter | 1 set | |
| Wind Cover | 1 piece | |
| The sample pan holder | 1 piece | |
| Tray handle | 1 piece | |
| Power cord | 1 piece | |
| Aluminum sample pan | 1 set | 50pcs |
| 100g standard weight | 1 piece | |
| Product Manual | 1 piece | |
| Product certification | 1 piece | |
| Warranty card | 1 piece |
