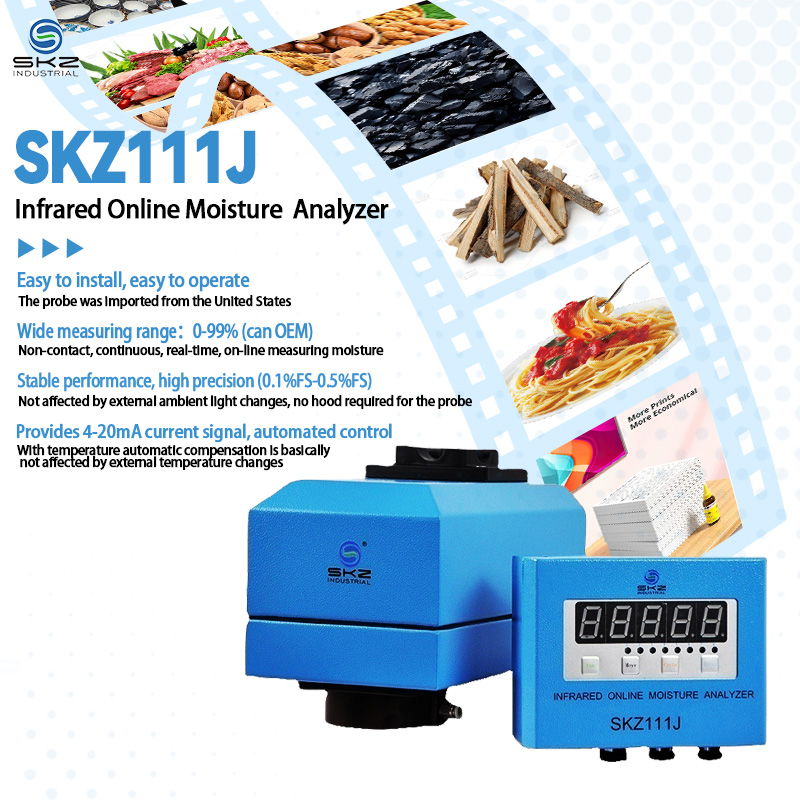

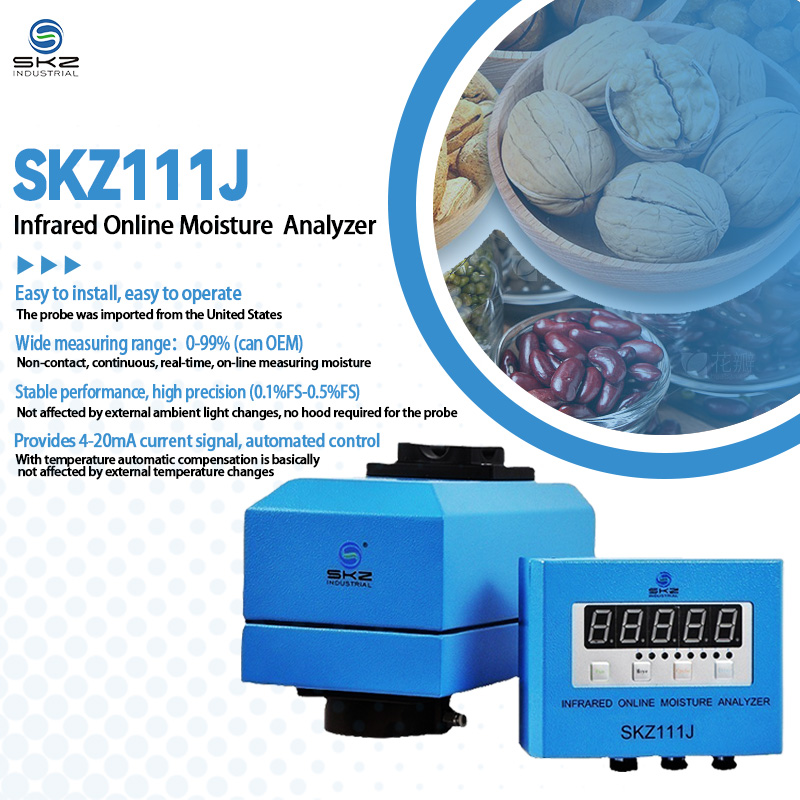

SKZ111J Infrared Online Moisture Analyzer
Description
1. Dual optical detectors with monitoring & compensation
2. Online fast continuous measurement
3. Non-contact measurement
4. Measuring distance 20-40cm adjustable
5. 8-beam infrared moisture analysis
6. Single-chip digital operation
7. Range 0-99% (OEM customizable)
8. Light spot diameter 10cm
9. US imported probe
10. Auto temperature compensation
11. Accuracy 0.1%FS-0.5%FS
12. CE certified
13. OEM customization available
14. Powered by 220V
15. Current output signal 4-20mA
1. 【Dual Optical Detectors + Compensation】Dual optical detectors with monitoring & compensation system ensure long-term measurement stability.
2. 【Online Continuous Non-Contact】Real-time moisture monitoring without production stoppage.
3. 【20-40cm Adjustable Distance】Non-contact measurement with 20~40cm adjustable distance – adapts to material fluctuation.
4. 【8-Beam Infrared Analysis】Significantly improved stability vs. 4-beam and 6-beam solutions.
5. 【Simple Digital Operation】Single-chip digital operation – simple operation without complex debugging.
6. 【0-99% Range, OEM Customizable】Measuring range 0~99% – OEM customizable range available.
7. 【10cm Light Spot, Large Coverage】Large coverage for better sample representativeness.
8. 【US Imported Temperature Probe】Fast response and high accuracy.
9. 【Auto Temperature Compensation】Basically unaffected by ambient temperature.
10. 【0.1%-0.5%FS High Accuracy】Stable and reliable performance.
11. 【CE Certified】Meets EU and overseas market export requirements.
12. 【OEM Customization】Meets brand owners' specific needs.
13. 【220V Power Supply】Adapts to industrial site power environments.
14. 【4-20mA Output】Interfaces with PLC/DCS systems.
Specifications
| Measuring range | 0-99% (can OEM) |
| Measurement resolution | 0.01% |
| Measuring accuracy | 0.1%FS-0.5%FS |
| Repeatability | 0.1% |
| Static accuracy | 0.1% |
| Light Diameter | 40mm |
| Light beam | 5 |
| Infrared wavelength | 1940nm |
| Infrared bandwidth | ±50nm |
| Filtering range | 0-2.5% |
| Measuring channel | 10 |
| Current signal | 4-20mA |
| Upper and lower control | Self-edit by end user |
| Measuring time | 0-60s |
| Sampling frequency | 125 ms / time |
| Measuring distance | 250mm±100mm |
| Measuring thickness | 0.1-0.3mm |
| Display | LED 7 digits display |
| Cable length between probe and display | 5m |
| I/O interface of probe | 7 pin aviation socket, 10 core aviation socket |
| I/O interface of display device | 3-core cable, 25 holes D-type socket, 4-core cable, 3-core cable(with 7-core aerial socket) |
| Power | 220V/50HZ, 100W |
| Operation humidity | ≤90% |
| Operation temperature | 0-50℃ |
| Light interference | Not affected by external ambient light changes, no hood required for the probe |
| Temperature effect | With temperature automatic compensation is basically not affected by external temperature changes |
| Gross weight | 17.5kg |
| Packing size | 440*340*510mm |
