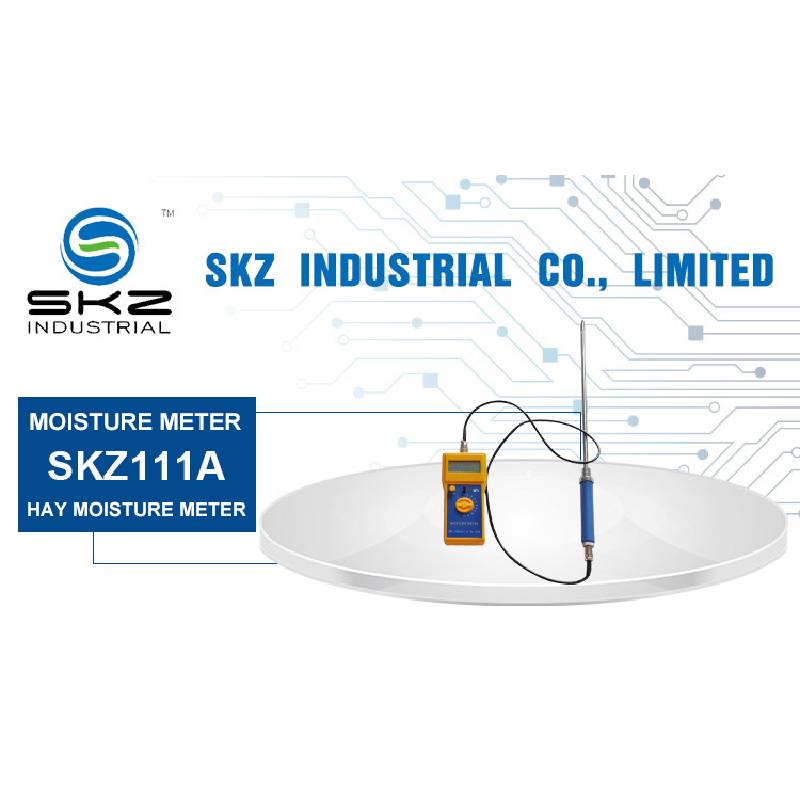

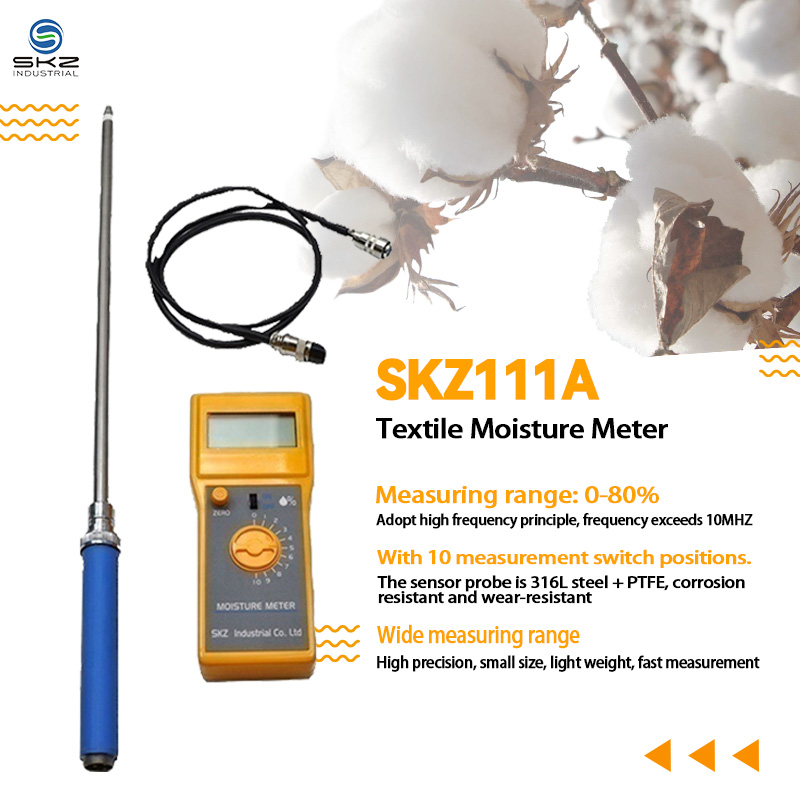

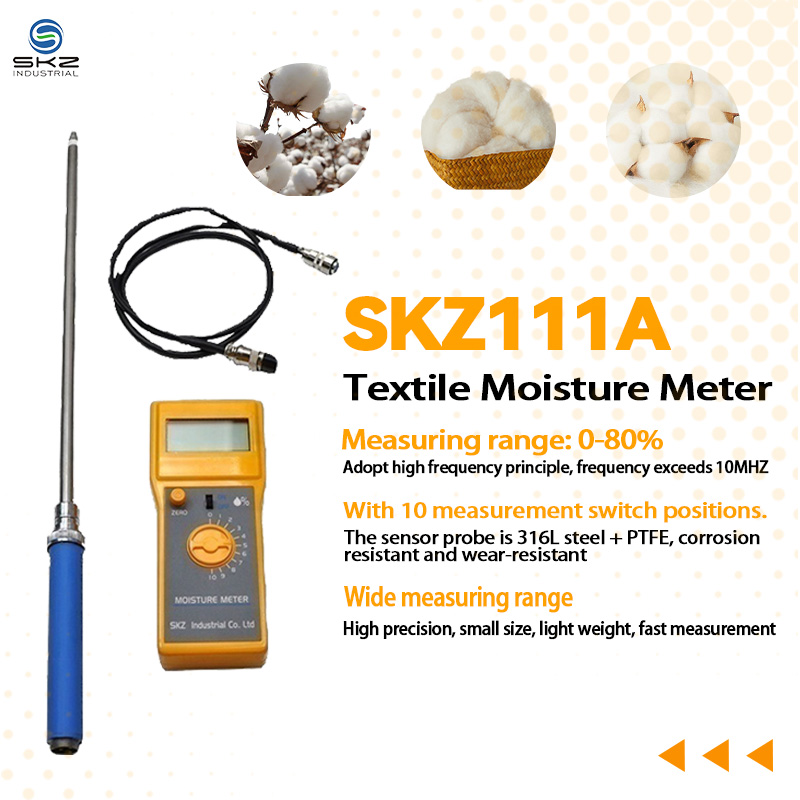

SKZ111A Portable Textile Moisture Meter
Description
1. High-frequency (10MHz) principle
2. 316L SS + PTFE probe, corrosion/wear resistant
3. 10 measurement gears
4. Range 0-80%
5. Segmented acc.: ±0.2%/±0.5%/±1%
6. Resolution 0.1%
7. Powered by single 9V battery
8. Probe optional 200mm or 600mm
9. Dimensions 160×60×27mm
10. Net weight 250g
11. Fast measurement
1. 【10MHz High-Frequency Detection】Fast response with high-frequency induction technology – completes testing in seconds.
2. 【316L+PTFE Composite Probe】Excellent corrosion and wear resistance – ideal for frequent contact with various textile materials.
3. 【10 Measurement Modes】One-key switching for cotton, wool, synthetics and more – accurate matching for each textile type.
4. 【0-80% Wide Range】From dry fabric to high-moisture fiber – covers the full spectrum of textile moisture.
5. 【3-Stage Segmented Accuracy】±0.2% (0-10%), ±0.5% (10-40%), ±1% (40-80%) – precision matched to each moisture range.
6. 【0.1% High Resolution】Captures subtle moisture fluctuations in textiles for finer quality control.
7. 【9V Battery Powered】Easy replacement without external power – perfect for QC personnel to carry and test anytime.
8. 【200/600mm Probe Optional】Flexible selection for different detection depths – adapts to various textile thicknesses.
9. 【Compact & Lightweight 250g】160×60×27mm, only 250g – one-hand operation, easy to carry anywhere.
10. 【Fast Measurement】Single test completed in seconds – greatly improves on-site inspection efficiency.
11. 【10MHz High-Frequency Principle】High-frequency detection over 10MHz for rapid response and accurate data.
Specifications
| Display | LCD display |
| Measuring range | 0 ~ 80% |
| Resolution | 0.1% |
| Accuracy | 0%-10%: ±0.2% |
| 10%-40%: ±0.5% | |
| 40%-80%: ±1% | |
| Probe | 600mm |
| Power | 9V battery*1 |
| Dimension | 160mm × 60mm × 27mm |
| Net weight/gross weight | 250g/500g |
| Package size | 610 X 110 X 170 mm |
