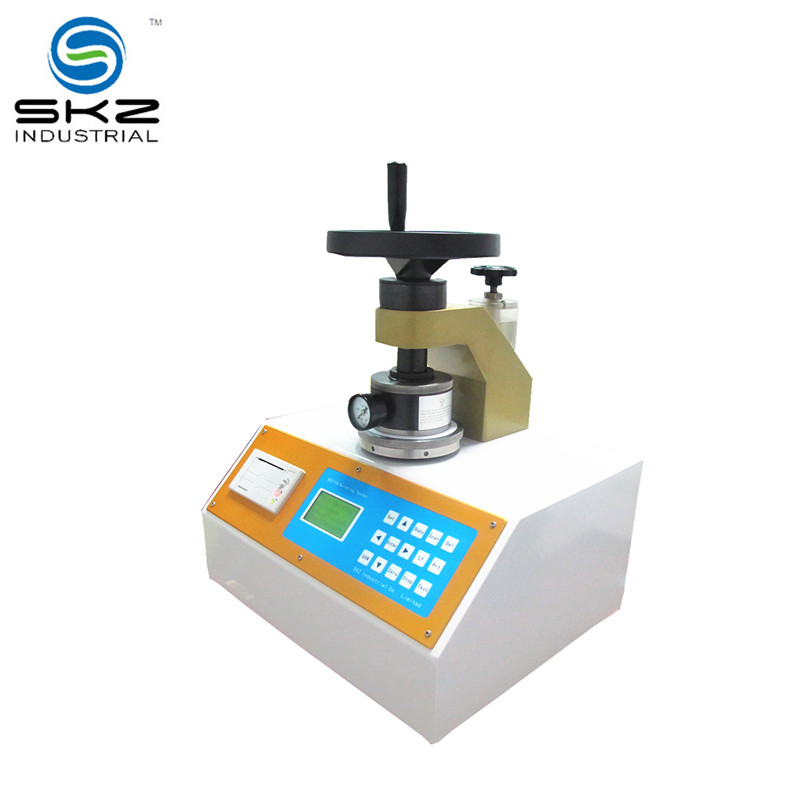

SKZ108A/B Bursting Tester
Description
1.Micro-computer control, use hydraulic oil as the driving force to break the specimen.
2.When the specimen is broken, it stores the maximum and reset automatically.
3.LCD displays,
4. It adopts signal transmitting press
5. Built-in printer, high speed print out the test results.
This high-performance strength tester adopts advanced microcomputer control technology and utilizes hydraulic oil as stable driving force to break test specimens. The hydraulic driving system delivers steady and uniform pressure throughout the testing process, ensuring smooth and standard specimen rupture and laying a solid foundation for accurate and repeatable test results.
Featuring intelligent automatic data processing and reset functions, the device automatically captures and stores the maximum test value the moment the specimen breaks. After each test cycle, it resets to the initial state automatically, effectively reducing manual intervention, saving operation time and supporting continuous batch testing efficiently.
Equipped with a clear LCD display screen, the tester presents real-time test data and working status intuitively. Users can easily monitor the entire testing process and read accurate data at a glance, bringing simple and convenient operation experience for daily laboratory testing.
Built with a professional signal transmitting press structure, the equipment ensures sensitive and stable signal transmission during pressure application. It precisely captures subtle pressure changes and test signals, avoiding data distortion and guaranteeing the authenticity and accuracy of every test result.
Integrated with a high-speed built-in printer, the machine supports instant and fast output of complete test results after testing. It realizes one-stop testing, data recording and report printing, greatly optimizing laboratory workflow and enabling convenient data archiving and quality traceability.
Specifications
| Items | Specification | |
| Type | SKZ108A Paper type | SKZ108B Cardboard type |
| Measure range | 50-1600kPa | 250 ~ 6000kPa |
| Pressure between platen | >430kPa | >690 Kpa |
| Transmit hydraulic speed | 95±5ml/min | 170±15ml/ min |
| Diaphragm resistance | Protruding 9mm: (20-40)mm |
Protruding 10mm, (170-220) mm Protruding 18mm, (250-350) mm |
| Continuous testing time | 5s | |
| Resolution | 1kPa | |
| Accuracy | ±0.5%F.S | |
| Hydraulic system tightness | On the measurement limit, one minute drop <10% Pmax | |
| Upper platen aperture dia. | (30.5±0.05)mm | (31.5±0.05)mm |
| Lower platen aperture dia. | (33.5±0.05) mm | (31.5±0.05)mm |
| Dimensions | 440 mm(L)×370 mm(W)×520 mm(H) | |
| Motor Power | 90W | |
| Power supply | 220V±10% 50Hz | |
| Weight | 55kg | |
