SKZ1061C
Description

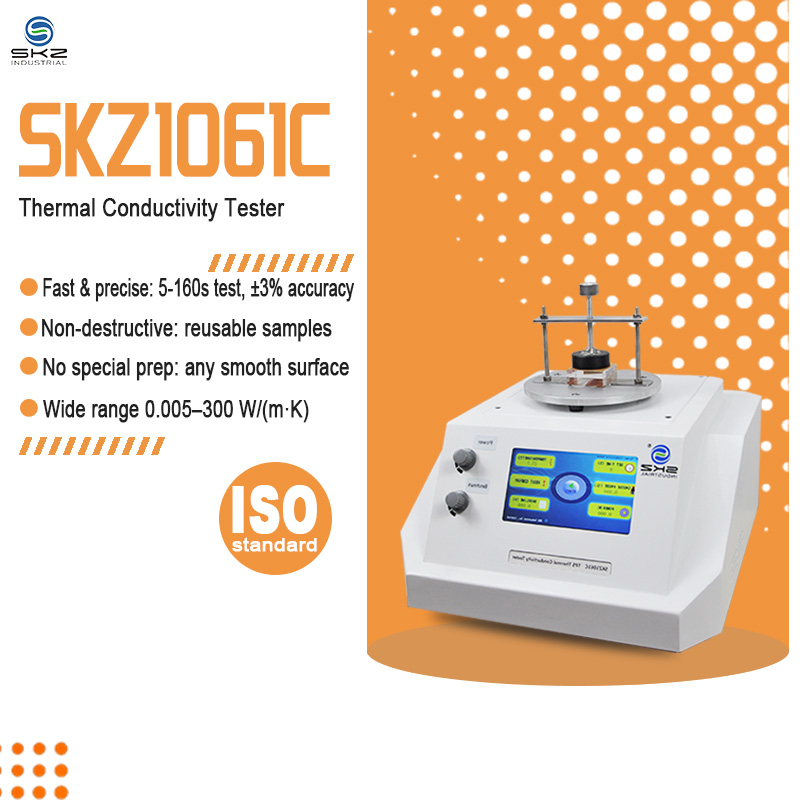

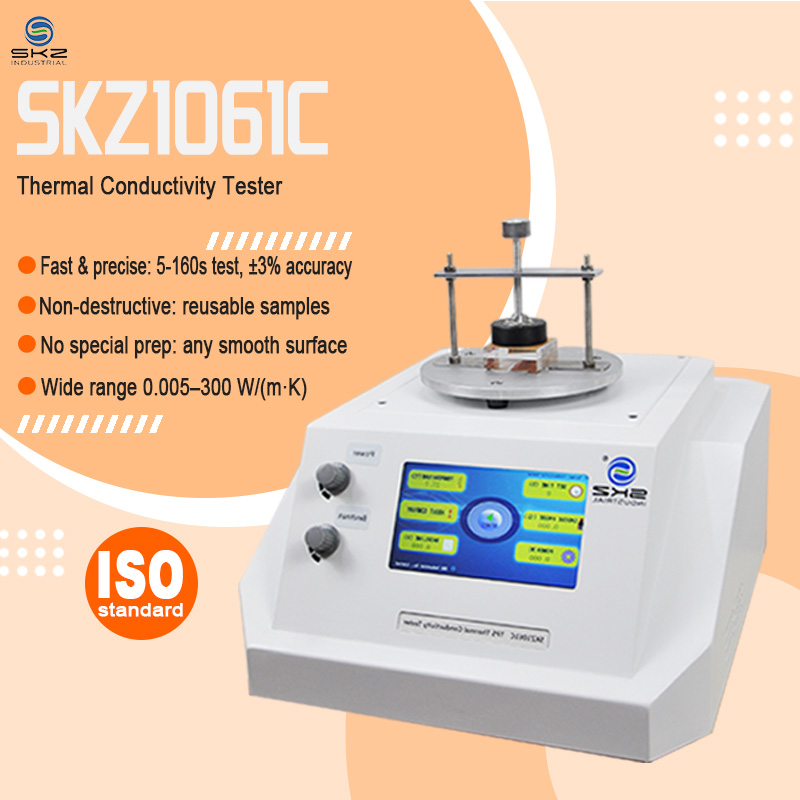

SKZ1061C
Fast & precise: 5-160s test, ±3% accuracy
Universal: for solids, liquids, powders, pastes
Non-destructive: reusable samples
No special prep: any smooth surface
ISO standard, touch screen, wide range 0.005–300 W/(m·K)
1. 【TPS Transient Plane Source Technology】TPS transient plane source technology with direct measurement, test time 5-160s (adjustable).
2. 【Unaffected by Thermal Contact Resistance】Unaffected by thermal contact resistance for accurate results.
3. 【No Special Sample Preparation】No special sample preparation or shape requirements; smooth surface sufficient for bulk solids.
4. 【Sample Stage for Various Thicknesses】User-friendly sample stage accommodates various thicknesses.
5. 【ARM Microprocessor, Fast & Accurate】ARM microprocessor ensures faster processing and accurate results.
6. 【Suitable for Multiple Sample Types】Measures solids, pastes, granules, gels, liquids, powders, coatings and thin films.
7. 【0.005~300W/(m·K) Wide Range】Thermal conductivity range 0.005~300W/(m·K) covers insulation to highly conductive materials.
8. 【Ambient~130℃ Testing】Test temperature ambient to 130°C simulates actual operating conditions.
9. 【Data Reflects Real-World Performance】Test data reflects real-world performance, supporting engineering design.
Specifications
| Measure method | Transient Plane Heat Source | |
| Test object | Solid, liquid, powder, paste, colloid, granule | |
| Test Range | 0.005--300W/(m*K) | |
| Standard | ISO 22007-2 2008 | |
| Applied range | Metal, ceramics, alloys, minerals, composite materials, paper, fabric, foam (smooth surface insulation material, plate), mineral wool, cement rock, glass, reinforced composite plate CRC, cement polystyrene board, taro, graphite, glass steel and steel plate, materials composite plate, paper-type foam plastics | |
| Advantages |
1. Rang of test sample is quite wide, sample can be liquid, solid and powder. 2. The test time is short, the fastest result is 5 seconds. 3. Test is convenient, the test probe can be moved |
1. 40~800℃ wide temp range (RT~1300℃ of SKZ1061C Pro version) 2. Higher precision 0.001 & higher repeatability, stable and reliable data 3. Dual test probes, dedicated holders for solid/liquid/powder 4. Meet multiple national & ISO standards, ultra-low power consumption |
