SKZ1053
Description

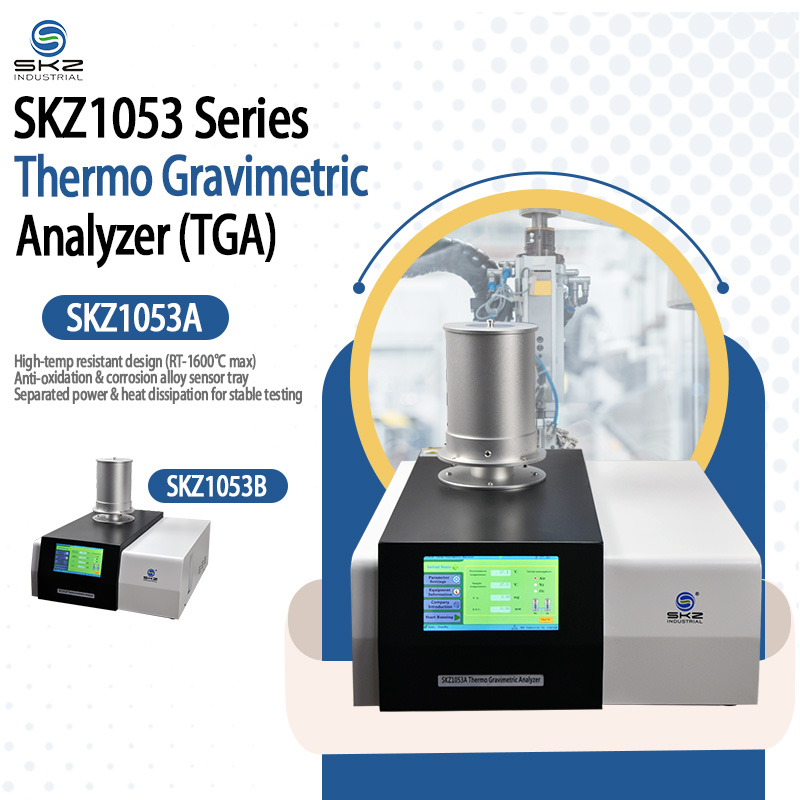

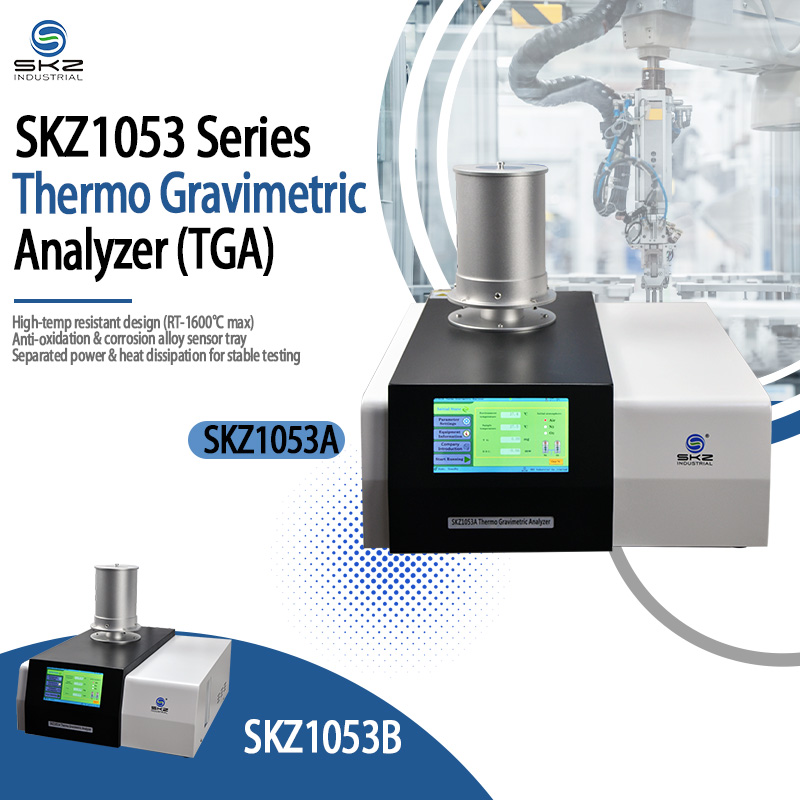

SKZ1053
High temp up to 1600°C
Precision: 0.01mg sensitivity
Robust structure: precious metal sensors
Smart control: 7-inch touch screen & USB
Multi-atmosphere: built-in gas switching
1. 【Precious Metal Alloy Wire Heating】Furnace heated by double-row precious metal Ni-Cd alloy wire for high-temperature resistance and minimal interference.
2. 【Precious Metal Tray Sensor】Precious metal alloy tray sensors offer high-temperature, oxidation and corrosion resistance.
3. 【Separated Power Supply & Cooling】Separated power supply and cooling components minimize heat and vibration interference to microbalance.
4. 【Top-Opening Design】Top-opening design enables easy sample loading without moving the furnace.
5. 【Thermal Insulation Protection】Main unit provides thermal insulation for chassis and micro-thermal balance.
6. 【Replaceable Furnace】Furnace replaceable per customer requirements.
7. 【Ambient~1150℃ High-Temp TGA】Temperature range ambient to 1150°C for TGA of polymers and inorganic materials.
8. 【Tests Thermal Decomposition/Stability/Content】Tests thermal decomposition, thermal stability and component content.
Specifications
| SKZ1053A | ||
| Temperature range | RT-1150℃ | |
| Applied range | Thermal stability, decomposition process, additive and description, oxidation and reduction, ingredients quantitative analysis, additives and filler and metals, volatiles and reaction kinetics | |
| Advantages |
1. The heating body uses high quality alloy, made with high temperature-resistance, which reduces interference and more accurate thermal weight loss. 2. The tray of the furnace is made of high alloy, well designed, well insulated, main and sub-rod independent. 3. The power supply circuitry and display board are part separation. 4. The balance is protected by gas, which may help to avoid the heating furnace body on the chassis and the balance of the adverse effects caused by thermal interference. 5. The furnace body can be repeated according to different instruments. 6. Infrared lamp body on the selected atmosphere of the customer requirements. |
1. 0.1 mg precision balance, automatic zeroing, with +5% circulation counter. 2. Auto lift furnace chamber, faster cooling 3. Built-in data acquisition and recording, data playback 4. ARPAN PFT process, 7 inch color touch screen & 5 function buttons 5. Support RS232 & USB data output, compatible with ISO & ASTM standards |
