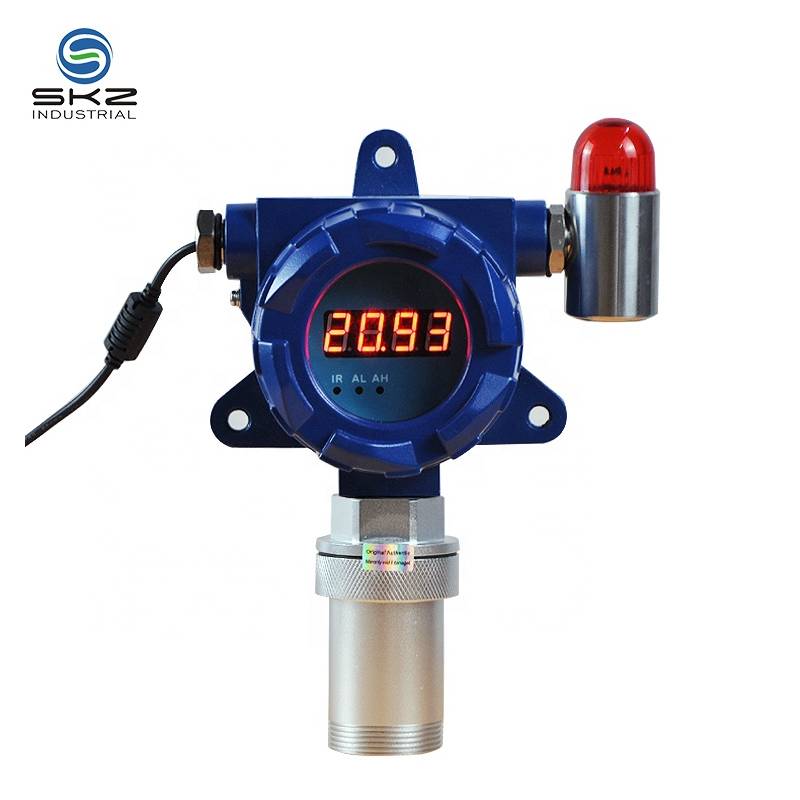

SKZ1050B
Description
1. 24/7 continuous monitoring; wall-mounted/duct/open-air installation
2. Original top-tier brand sensors with advanced microprocessor
3. 4-20mA + RS485 + relay multiple signal outputs
4. 15m infrared remote control for non-contact operation
5. Explosion-proof: II 2G Ex db IIC T6 Gb IP65
6. Self-calibration, zero calibration & temp compensation; on-site maintenance-free
7. Two-level alarms; drives external devices (fans, solenoid valves)
8. 12-36V DC wide voltage power supply
1. 【24/7 Industrial Safety Guardian】 Continuous online monitoring with wall-mounted, duct, and open-air installation options.
2. 【Imported Sensor Core】 Features original top-tier brand sensors with ≤10s response time and ≤1%FS annual zero drift.
3. 【Seamless System Integration】 Supports 4-20mA, RS485, and relay outputs for easy connection to PLC, DCS, and alarm systems.
4. 【IR Remote for Hazardous Areas】 15-meter infrared remote enables non-contact operation and commissioning without cover opening.
5. 【Heavy-Duty Explosion Proof】 Rated II 2G Ex db IIC T6 Gb with IP65 protection, die-cast aluminum and stainless steel housing.
6. 【Smart Self-Calibration】 Self-calibration, zero calibration, and temperature compensation reduce on-site maintenance and downtime.
7. 【Automatic Linkage Response】 Two-level alarms with adjustable thresholds trigger external devices like fans and solenoid valves.
8. 【Wide Voltage Compatibility】 Accepts 12-36V DC input for various industrial power environments.
9. 【Comprehensive Industrial Protection】 Lightning, static, reverse-connection protection with EMI/EMC/surge immunity for stable operation.
10. 【All-Weather Adaptability】 Operates from -20°C to 50°C with 0~95% RH tolerance for reliable monitoring in extreme climates.
11. 【Flexible & Compact Installation】 G1/2 male thread connection, 180×150×90mm, ≤1.6kg for space-saving flexible deployment.
Specifications
| Gas Detected | Ethanol C2H5OH |
| Detection principle | Electrochemical principles |
| Sampling Method | Wall-mounted, pipeline, flow type |
| Measure Range | 0-50PPM, 0-100PPM, 0-500PPM, 0-1000PPM |
| Resolution | 0.01PPM, 0.1PPM |
| Precision | 2% FS |
| Signal Output | 4-20mA signal output, relay output, RS485 output |
| Response Time | ≤ 10S |
| Repeatability | ≤ ± 1% |
| Zero shift | ≤ ± 1% (F.S / Year) |
| Operating language | Support in English |
| Temperature | -40 ℃ ~ 70 ℃ |
| Explosion-Proof | Ex dII CT6 |
| Alarm mode | Sound, light |
| Dimensions | 180×150×90mm |
| Recovery Time | ≤ 10S |
| Linearity error | ≤ ± 1% |
| Display | LED |
| Gas unit | PPM |
| Humidity | 0-95% RH |
| Degree of protection | IP65 |
| Weight(net/gross) | 1.6KG |
| Standard | 1 host detector, 1 Infrared remote control, 1 manual, 1 warranty card. |
| Optional | data download (EXCEL fromat) function, Circulation cover (for pipeline installation),Drying cylinder, External pump |
