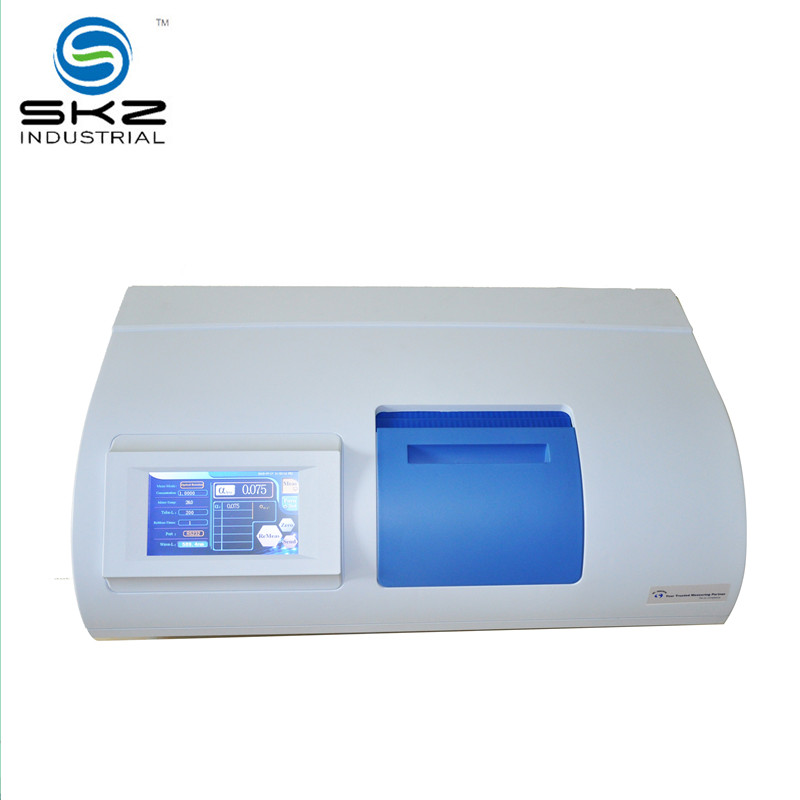

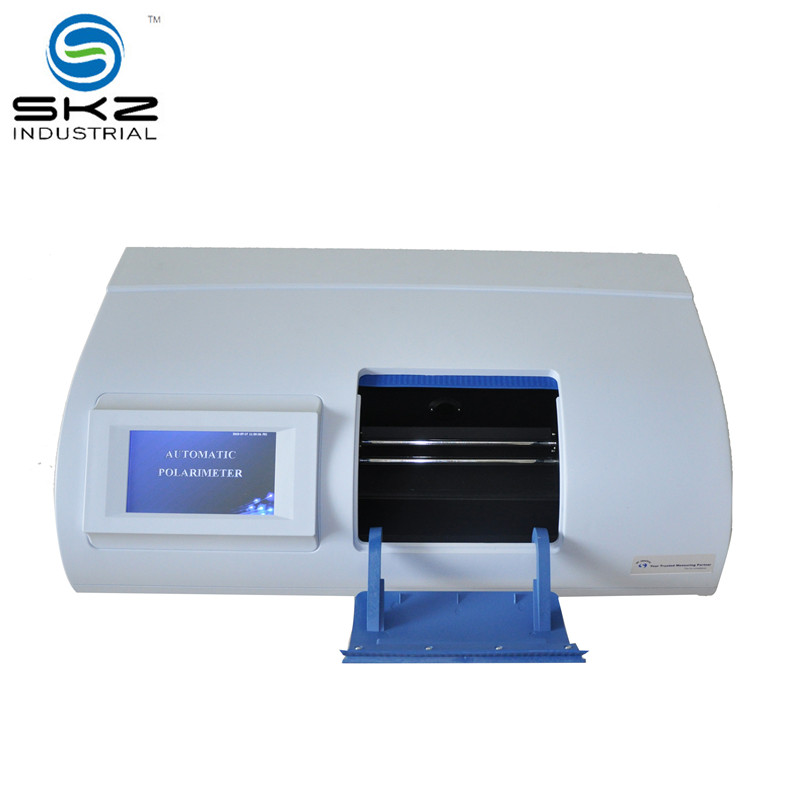

SKZ1039E Digital Automatic Polarimeter
Description
SKZ1039E
Ultra-high precision digital automatic polarimeter with color LCD touch screen
LED light source with 20,000h lifetime
Measuring range: ±90° (optical rotation), ±259°Z (Brix)
Resolution: 0.0001°, Accuracy: ±0.003°
Repeatability: 0.0005°, Minimum transmittance: 0.01%
Built-in Peltier temperature control (10-50°C, ±0.1°C accuracy)
Windows operating system with 16G data storage
GMP compliant, micro tube available
USB/Keyboard/Mouse/Printer/VGA/Ethernet output
1. 【Ultra-High Precision Measurement】 Delivers exceptional resolution of 0.0001° with accuracy of ±0.003° and repeatability of 0.0005°, making it the highest precision model in the SKZ polarimeter series for the most demanding analytical applications.
2. 【Exceptional Low Transmittance Capability】 Features minimum transmittance as low as 0.01%, enabling accurate measurement of extremely dark-colored, turbid or difficult samples that cannot be tested by conventional polarimeters.
3. 【Built-in Peltier Temperature Control】 Integrated Peltier temperature control system with range of 10-50°C and accuracy of ±0.1°C, ensuring precise thermal stability and eliminating temperature-related measurement errors.
4. 【High-Quality Optical System】 Uses high-quality prisms that significantly enhance response speed (8°/S), reduce measurement time (6 times/26S) and improve overall optical performance.
5. 【Ultra-Wide Measurement Range】 Covers test range of ±90° (optical rotation) and ±259°Z (Brix), accommodating a comprehensive range of optically active substances from pharmaceuticals to sugars.
6. 【Large Custom Method Storage】 Allows users to customize up to 300 measurement methods pre-stored in the system, eliminating the need to reconfigure parameters for routine tests and greatly improving workflow efficiency.
7. 【8-Inch Color LCD Touch Screen】 Equipped with 8-inch color dot matrix touch LCD display with Windows operating system, providing intuitive operation, clear data visualization and advanced user interface.
8. 【Multi-Point Automatic Calibration】 Features multi-point automatic calibration function, simplifying instrument maintenance and ensuring consistent measurement accuracy over time.
9. 【Large Data Storage Capacity】 Windows operating system with 16G database storage provides ample capacity for comprehensive data management, including measurement records, method storage and system logs.
10. 【GMP Compliance】 Fully compliant with GMP regulations, making it suitable for pharmaceutical quality control and other regulated industries requiring strict data integrity, audit trails and traceability.
11. 【Micro Tube Compatibility】 Supports micro tubes for small sample volume measurements, significantly reducing sample consumption for valuable or limited-quantity samples.
12. 【Comprehensive Connectivity Options】 Equipped with USB, keyboard, mouse, printer, VGA and Ethernet interfaces, offering flexible connectivity for data export, peripheral integration and network connectivity.
13. 【Robust Construction】 With dimensions of 745×409×295mm and weight of 38kg, the instrument features a stable and durable construction suitable for demanding laboratory environments.
14. 【Wide Applications】 Ideal for pharmaceutical, drug testing, sugar, food, spices, MSG and chemical and oil industries. Particularly suited for advanced research laboratories, quality control facilities and regulated industries requiring the highest level of precision, sensitivity and data integrity in optical rotation measurement.
Specifications
| SKZ1039 | SKZ1039B | SKZ1039B-1 | SKZ1039C | SKZ1039D | SKZ1039D-1 | SKZ1039D-2 | SKZ1039E | |
| Test method | optical rotation | Optical rotation, specific rotation, concentration, Brix | Optical rotation, specific rotation, sugar degree and concentration (custom) | |||||
| Wavelength | 589.44nm | 589nm (Sodium D spectroscopy) | 589nm/546nmOptional: 405nm, 436nm, 578nm, 632nm | 589nm (Sodium D spectroscopy) | ||||
| Temperature range | / | / | 15-30℃ | 15℃-30℃ | 15℃-30℃ | 10℃-15℃ | ||
| Temp.control range | ±180° | ±45° (Optical rotation);±200℃(Temperature) | ±89.99°(Optical rotation) | ±90° (Optical rotation);±259°Z (Brix) |
||||
| Operation system | / | / | / | / | / | / | Windows | Windows |
| Measurement Resolution | / | / | / | / | 0.001° | 0.0001° | 0.0001° | 0.0001° |
| Applied range | Polarimeter in the testing instruments to measure the optical rotation of material Widely used in pharmaceutical, drug testing, sugar, food, spices, MSG and chemical and oil industry | |||||||
| Advantages |
1. Visual type 2. Economic measurement as economy price 3. LED light source |
1. Using life more than 5000h clock as a light source, instead ofthe previous sodium lamp and halogen, which has a short, easy to damage lifetime. 2. Sample chamber temperature and the ambient temperature constant to avoid errors caused by tempering 3. Using the most advanced digital circuit and microcomputer control technology, install LCD display, clear and intuitive test data |
1.With multi-wavelength selection function, basic wavelength is 589nm, other wavelengths are optional: 405nm, 436nm, 546nm, 578nm, 632nm. 2. Temperature control device: built-in heating and cooling device, with intelligent temperature control box, to achieve automatic measurement of sample rotation. 3. With touch screen display interface. 4.Provides WINDOWS user interface, simple and intutive,stable and reliable. |
1. Using high quality prisms, enhances the response speed, measurement time and maximum interferencewhen when testing. 2. User can customize up to 300 measurement items that are you stored in the system 3. With temperature control interface (SKZ1039D-1, SKZ1039D-2, SKZ1039E) 4. Color LCD touch screen display |
||||
