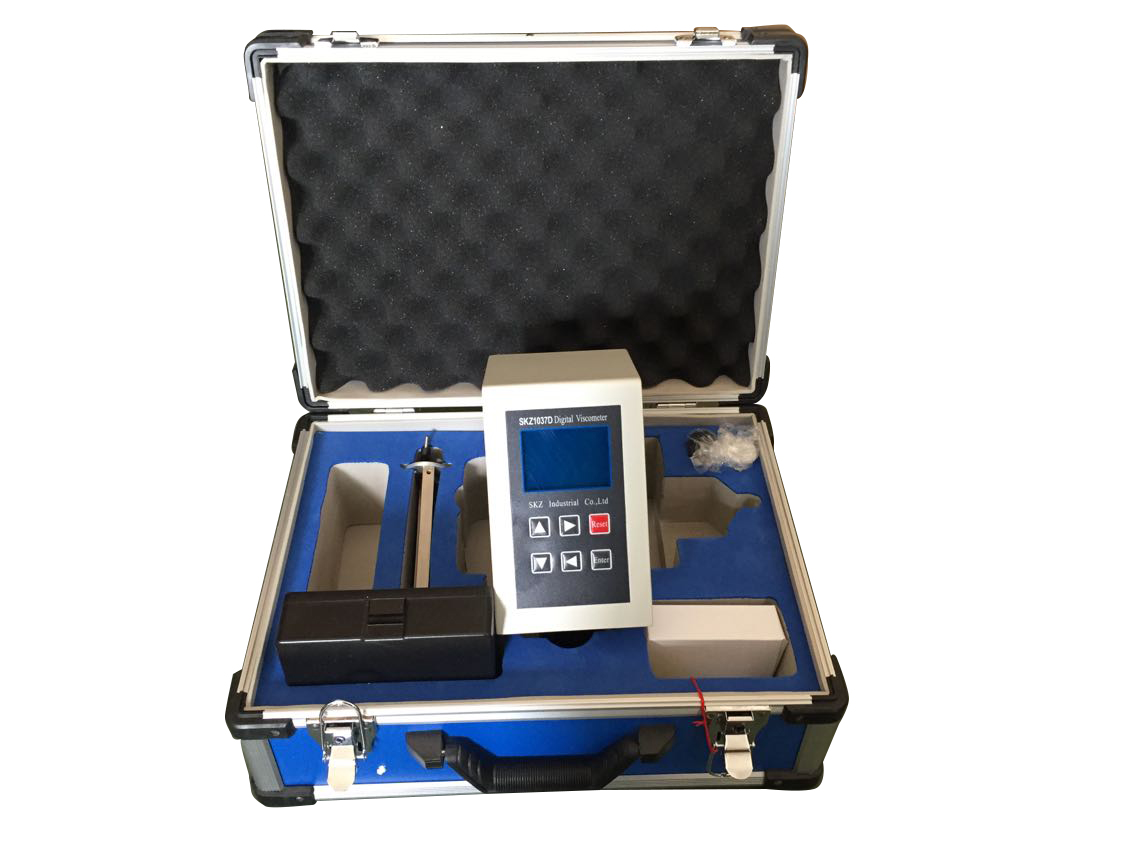

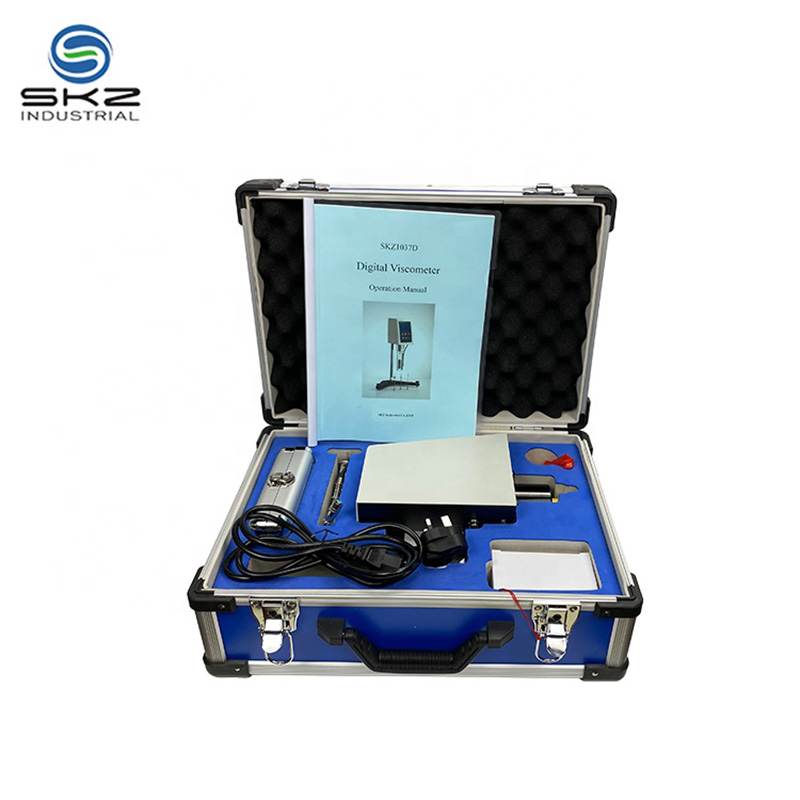

SKZ1037C SKZ1037D Digital Viscometer
Description
1. Measure range: 10～10×104 mPa.s,
2. Rotor speed: 6/12/30/60 r/min
This precision pulp viscosity tester is designed for accurate fluid viscosity measurement in pulp and paper laboratories, delivering stable and repeatable detection results for routine quality control and material performance analysis.
It features a wide professional measurement range from 10 mPa.s to 10×10⁴ mPa.s, fully covering the viscosity variation of most pulp suspensions and paper-making fluids. The broad testing scope meets diverse detection demands for different pulp types and processing conditions, supporting comprehensive viscosity evaluation.
The device provides four selectable rotor speeds: 6, 12, 30 and 60 r/min. Multi-speed options allow flexible testing configuration for samples with high or low viscosity. Users can match the optimal rotating speed according to sample characteristics, ensuring precise data acquisition and reliable test accuracy for various fluid samples.
Adopting optimized shaft drive technology, the equipment runs with balanced power output and high transmission efficiency. It maintains steady rotation during testing to avoid data fluctuation caused by unstable operation. With ultra-low noise performance below 40 decibels, it ensures quiet and smooth long-term laboratory operation.
Constructed with premium stainless steel, the tester offers outstanding corrosion resistance and durable service life. Supported by intelligent digital display and automatic timing & temperature control functions, it simplifies operation, minimizes manual errors, and serves as an essential high-precision instrument for pulp viscosity testing and laboratory research.
Specifications
| Model | SKZ1037C | SKZ1037D |
| Measurement range | 10 ~ 10×10⁴ (mPa.s) | 10 ~ 2×10⁷ (mPa.s) |
| Rotor speed (r/min) | 6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 |
| Rotor Specifications | 123*4# | 1#2#3#4# |
| Measurement error (F.S) | ±1% | ±1% |
| Repeatability | ±0.5% | ±0.5% |
| Optional printer printout | No | Printer with extra charge |
| PC communication interface | no | no |
| Power Supply | AC220V, 50Hz | AC220V, 50Hz |
| Ambient temperature | 5℃ ~ 35℃ | 5℃ ~ 35℃ |
| Relative humidity | less than 80% | less than 80% |
| Optional accessoriesWith extra charge |
1. 0 # rotor 2. circulating water bath 3. special double layer 4. Small sample adapter |
1. 0 # rotor 2. circulating water bath 3. special double layer 4. Small sample adapter 5. mini-printer |
