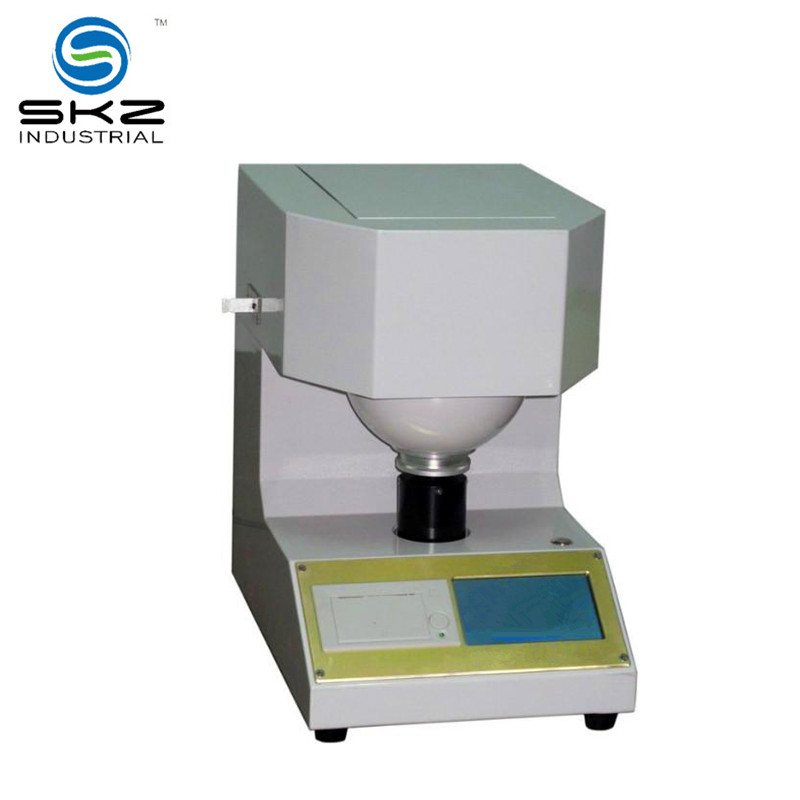

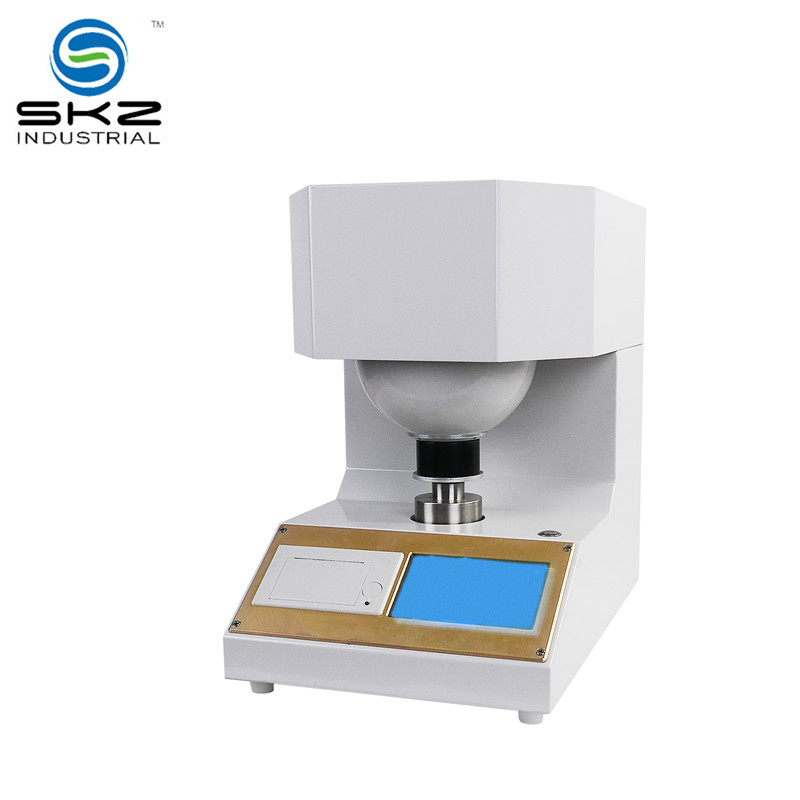

SKZ102B-1 Brightness Color Meter
Description
1. Top-tier 32-bit ARM chip for faster, more precise computation; upgraded touchscreen without manual handwheel, one-key auto-test.
2. Expanded test functions: lead concentration detection, full set of Hunter/CIE color parameters, more whiteness indexes.
3. Dual communication ports (RS232 + USB optional), imported silent thermal print head.
4.Optimized mechatronic structure, higher test precision & stability.
1. New design of the motherboard, CPU using 32-bit ARM processor to improve the processing speed of the instrument, calculate the data more accurate and fast.
2. Using 5-inch TFT true color LCD touch screen, the operation more humane, new users in 1 minute to master the use of methods.
3. The use of advanced mechatronic design, to abandon the original hand-turning hand wheel, thus solving the original test cumbersome (must be rotated 4 times to finish the hand wheel to test a whiteness and color), but also to solve the hand wheel rotation Positioning error, truly a key to test the brightness and color.
4. Simulation of D65 lighting body lighting. The chromatic aberration formula of CIE1964 (L * a * b *) color space is supplemented by CIE1964.
5. Use d / o illumination to observe geometrical conditions. Diffuse ball diameter of 150mm, measuring hole diameter of 25mm, with a light absorber, eliminating the sample mirror reflection of light.
6. The instrument increases the function of measuring lead concentration.
7. The printer uses imported thermal printer core, without the use of ink and ribbon, work without noise, print speed.
8. Equipped with standard RS232 and USB interface, can be used to communicate with computer software.(optional with extra charge)
9. Reference can be physical, but also for the data. The instrument can store up to ten reference samples.
10. With memory function, even if the long-term shutdown power, memory, zero, calibration, standards and reference samples such as the amount of information will not be lost.
Specifications
| Accuracy | Y₁₀ ≤ 1.0x₁₀ (y₁₀) < 0.005 |
| x₁₀ (y₁₀) < 0.005 | |
| Stability of measured values | Warm up, within 30min, Δf ≤ 0.1 |
| Repeatability | Rₓ, Rᵧ and R₂ ≤ ±0.10Color coordinates ≤ ±0.0010R₄₅₇ ≤ ±0.10Σ(Y₁₀) < 0.05Σ(x₁₀ - y₁₀) < 0.001 |
| Sample size | Test plane not less than Φ30mm, thickness not exceed 40mm |
| power supply | AC220V, 50Hz, 0.3A |
| working environment | Temperature 0 ~ 40℃, relative humidity less than 85% |
| size | 380 × 260 × 390 (mm) |
| weight | 12 kg |
