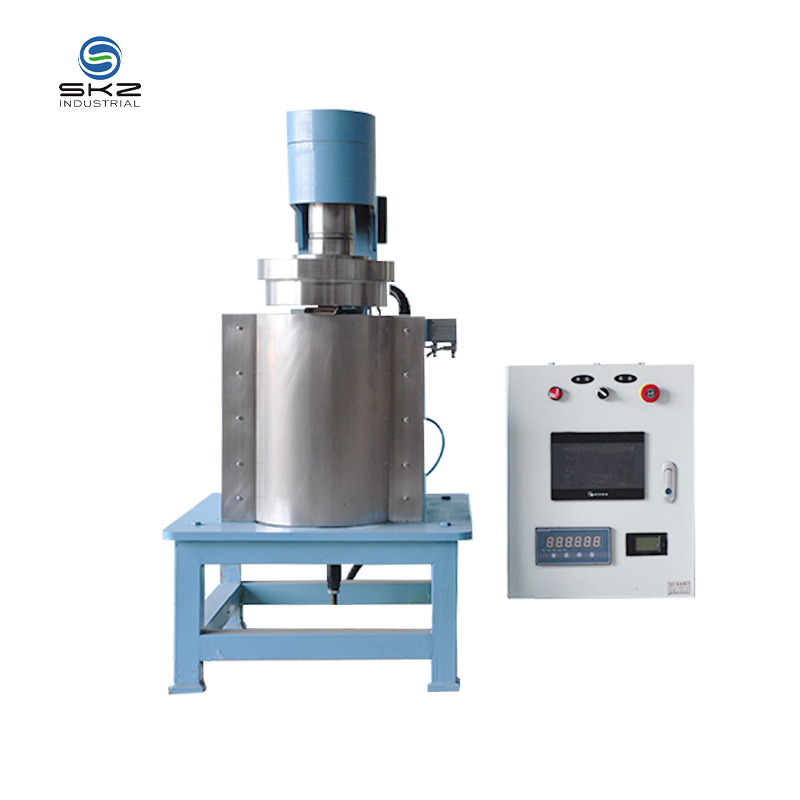

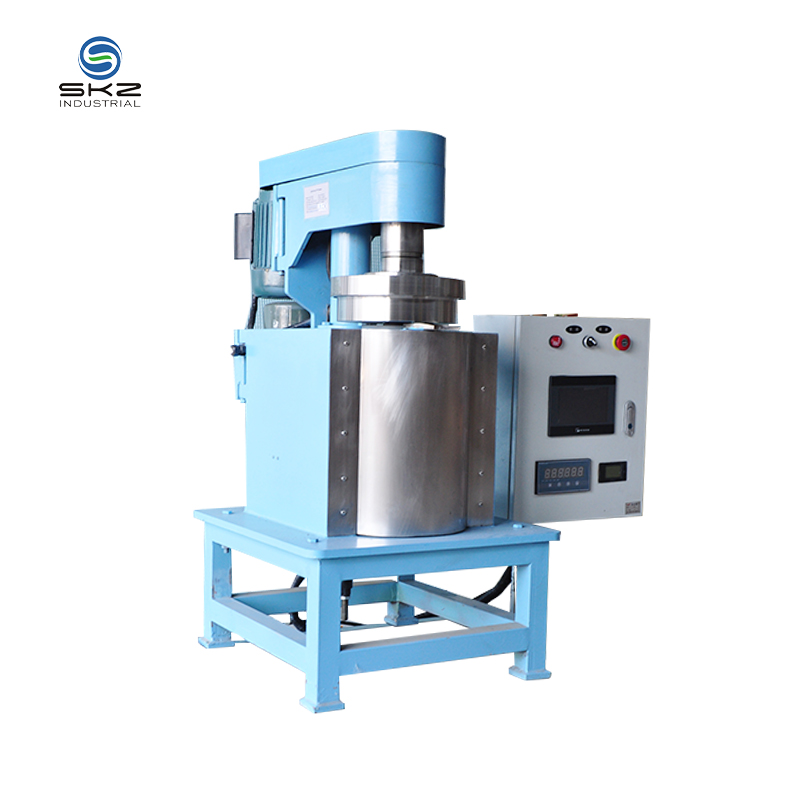

SKZ1028A Laboratory Valley pulp Beater
Description
1. All core contact parts stainless steel, adjustable beating gap (0–25mm) & dual pressure modes
2. Touchscreen + microprocessor auto-control: preset revolutions, timing, auto power-off post-test
3. Variable speed knife roller & chamber, stable linear speed difference (6.0±0.2 m/s)
4. Fits 5–30g absolute dry pulp, applicable 5–20% pulp consistency
5. Built-in safety protection, easy calibration, simple cleaning & maintenance
This high-performance automatic pulp beater is designed for precise and standardized fiber beating tests, delivering stable and repeatable results for pulp research and laboratory quality control. With upgraded automatic control and flexible mechanical adjustment, it adapts to diversified pulp beating requirements with excellent usability and reliability.
All core material contact parts are made of premium stainless steel, ensuring rust resistance, corrosion resistance and long-term durability. The machine supports an adjustable beating gap from 0 mm to 25 mm and provides dual pressure modes, allowing flexible parameter tuning to match different fiber properties and customized testing standards.
Powered by touchscreen and microprocessor automatic control systems, the unit enables preset revolution and timing functions. It automatically powers off after test completion, effectively simplifying operation procedures, reducing manual errors and ensuring consistent, standardized test cycles.
Equipped with variable-speed knife roller and chamber, the equipment maintains a stable linear speed difference of 6.0±0.2 m/s throughout operation. This steady mechanical performance guarantees uniform fiber beating quality and highly reliable, reproducible experimental data for rigorous laboratory analysis.
It fits absolute dry pulp samples ranging from 5 g to 30 g, with applicable pulp consistency between 5% and 20%, covering common laboratory test specifications. Featuring built-in safety protection, easy calibration procedures and convenient cleaning and maintenance, this user-friendly pulp beater is a practical and cost-effective solution for daily pulp performance testing and academic research
Specifications
| Beating chamber | diameter 250mm, deep 52mm |
| Knife rotor motor | Y90S-4, 1.1Kw, 380V/50HZ |
| Knife Rotor | Dia. 200mm, height 50mm, blade thick 5mm |
| Beating chamber Motor | YS-7124, 0.37Kw, 380V/50HZ |
| Linear speed difference | (6.0 ± 0.2) m / s |
| Beating pressure | (3.33 ± 0.1) N / mm Blade length |
| (1.77 ± 0.1) N / mm Blade length | |
| Beating gap adjustment distance | 0-25mm |
| Photoelectric counter | Count 0-999999 |
| Beating pulp concentration | 5-20% (recommend 10%) |
| Dry pulp | 5-30g |
| Dimensions | Host: 760×400×1000mm |
| Electrical cabinet: 400×350×950mm | |
| Weight | 350kg |
