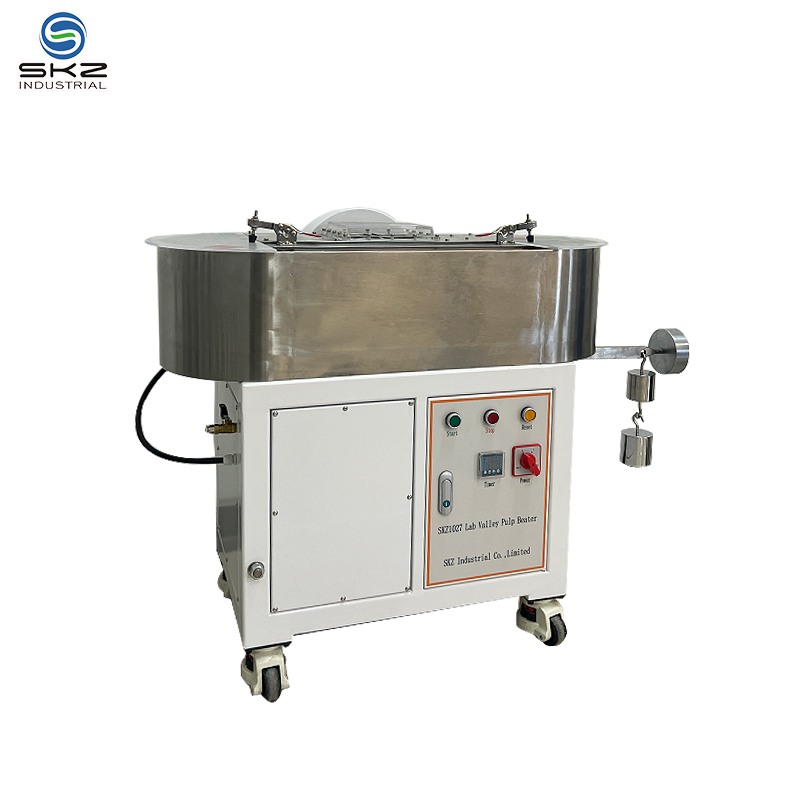

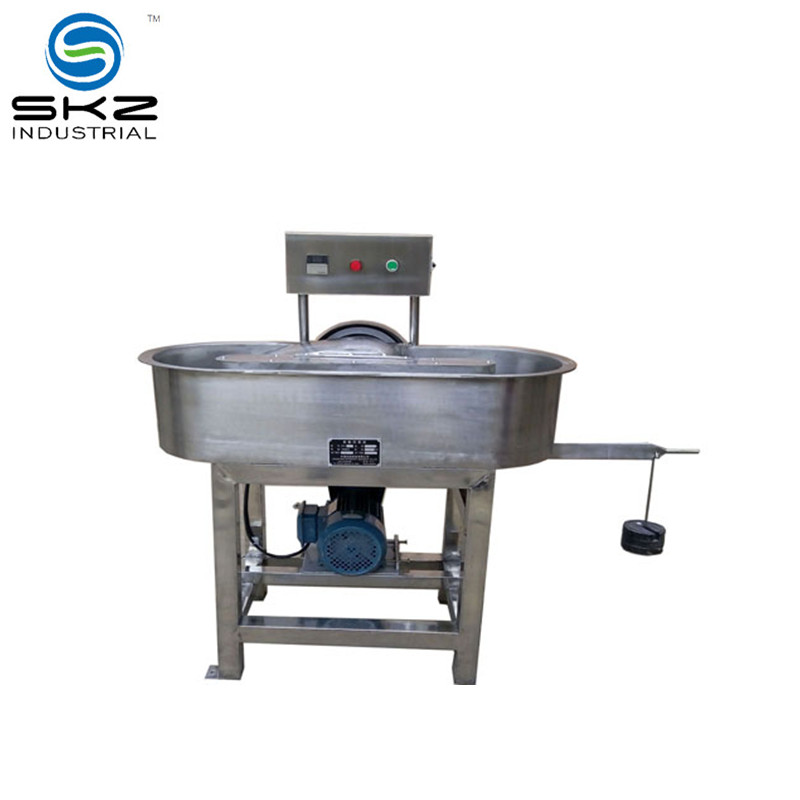

SKZ1027A SKZ1027B SKZ1027C SKZ1027D Laboratory Valley pulp Beater
Description
1.Widely used in a variety of plant fibers,
synthetic fibers, carbon fibers, glass fibers beating test
2. Stainless steel pulp Dutch Valley cell, beater roll, bottom knives.
3. Timed automatic control system with time, beating time can be selected.
4. Pulp cell cover high strength transparent material, and intuitive.
5. Beater roll using a special process, a molding, with no noise, no loosening, no rust.
6. Can be adjusted according to the situation under the pressure;
7. All parts in contact with water, all made of high quality stainless steel.
8. Kneading blade is divided into two kinds of blade and cutting for users to choose
9.3500g dry pulp, concentration: 5%-15%.
This versatile pulp beater is professionally developed for standardized fiber beating tests, suitable for a wide range of materials including plant fibers, synthetic fibers, carbon fibers and glass fibers. It supports flexible beating tests with adjustable pulp parameters, meeting diverse experimental and production testing demands for multiple fiber types.
The whole water-contact structure adopts premium stainless steel material, including the Dutch Valley cell, beater roll and bottom knives. The corrosion-resistant, rust-proof stainless steel construction ensures hygienic testing conditions, stable long-term operation and consistent test accuracy. Fitted with a high-strength transparent cover for the pulp cell, it enables intuitive real-time observation of the internal beating status throughout the test process.
The beater roll adopts integral one-piece molding with special craftsmanship, featuring no noise, no loosening and no rust during continuous operation. Users can freely adjust the rolling pressure according to different fiber characteristics and testing requirements, realizing targeted and standardized beating treatment. In addition, two optional kneading blade types, blade type and cutting type, further enrich customized testing solutions.
Equipped with a precise timed automatic control system, the machine allows free selection and accurate setting of beating time, effectively ensuring repeatable and uniform test results. It supports a dry pulp weight of 3500g and adapts to pulp concentrations ranging from 5% to 15%. With reliable performance, flexible adjustment and durable build, this all-functional pulp beater is an ideal device for fiber research and pulp quality testing.
Specifications
| Capacity | 23 liters (A type), 35L (B type), 300L (C type), 500L(D typ) |
| Standard beating quantity | 23L: 360g dry pulp, concentration: 5%-15% |
| 35L: 3500g dry pulp, concentration: 5%-15% | |
| 120L: 12000g dry pulp, concentration: 5%-15% | |
| Knife roll size | Φ195 × 155 |
| Knife roll speed | 500 ± 10/min |
| Bottom Blade size | 160 × 16 × 3.2 (7) |
| Blade Size | 160 × 70 × 4.7 (32) |
| Load lever arm | (54 ± 1) N |
| Motor | Y801-4, 0.55KW |
| Motor speed | 1400 r/min |
| Power | 1500W (23L), 3000W (35L), 4500W(120L) |
| Pulp Chests wall thickness | ≥ 4mm |
| Dimensions | 1230mm × 850mm × 1180mm(23L) |
| Weight | 200 kg (23L) |
