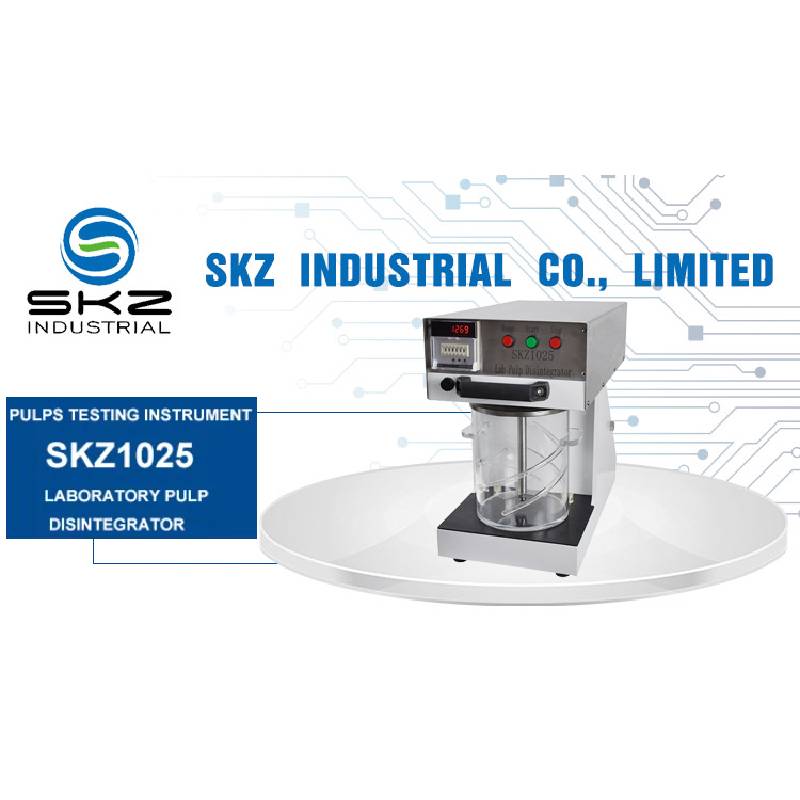

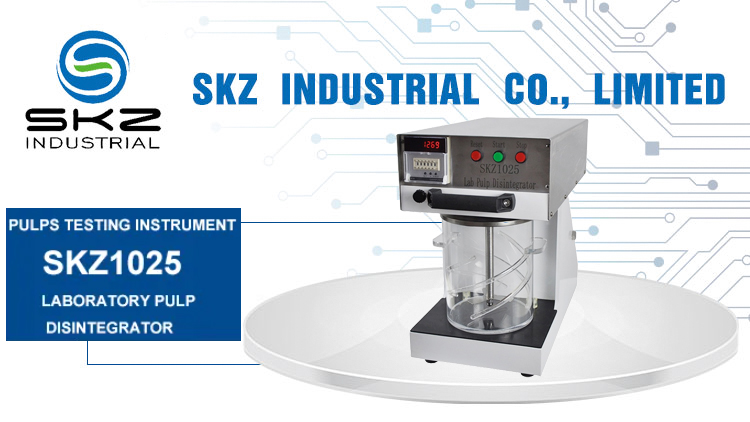

SKZ1025 Laboratory Pulp Disintegrator
Description
1. Complies with ISO5263, TAPPI T205, JIS-P8220 global standards
2. Standardized fixed stirring speed, 4 spiral baffles & 3-blade impeller for consistent test results
3. Digital rotation preset counter with simple Start/Stop/Reset control
4. Compact size, stable low-vibration structure, 400W power, 44kg weight
5. Cost-efficient for pulp lab quality testing & research.
This professional pulp stirring tester is engineered for standardized pulp laboratory testing and fiber research, fully compliant with global authoritative testing norms. It delivers consistent, accurate and repeatable test results, serving as a cost-effective core device for daily pulp quality inspection and experimental research.
The instrument strictly complies with mainstream international standards, including ISO5263, TAPPI T205 and JIS-P8220, ensuring all test data is internationally recognized and highly credible. It fully meets standardized testing requirements for pulp fiber treatment in various countries, adapting to diverse industrial and laboratory detection scenarios.
Equipped with a standardized fixed stirring speed, four spiral baffles and a three-blade impeller, the device achieves uniform and stable pulp stirring. This professional structural configuration eliminates stirring deviations and uneven pulp dispersion, effectively guaranteeing high consistency and reproducibility of every test result.
Featuring a user-friendly digital control system, it adopts a digital rotation preset counter with intuitive Start, Stop and Reset buttons. The simple and efficient operation interface lowers operational difficulty, enables precise rotation setting and one-key control, and greatly improves laboratory testing efficiency.
With a compact overall structure and stable low-vibration design, the tester is lightweight at only 44kg and equipped with a 400W stable power system. It saves lab space, runs smoothly with low noise and vibration, and maintains long-term stable working performance. Boasting high cost performance, it is an ideal choice for pulp factory quality control and professional laboratory scientific research.
Specifications
| Vessel inner diameter× height | φ152 × 191mm |
| Spiral baffle inside | width × pitch × Number: 6.5 × 51 × 4 |
| Agitator blades | φ90 three blades |
| Agitator shaft | from the top is rotated clockwise |
| Distance from bottom of container agitator blade | 25mm |
| Impeller rotation frequency | 48.3 ± 1.6S-1 |
| Total power | 220VAC single-phase 400W, motor: 370W |
| Dimensions | 450 × 265 × 395 (mm) |
| Weight | 44 kg |
