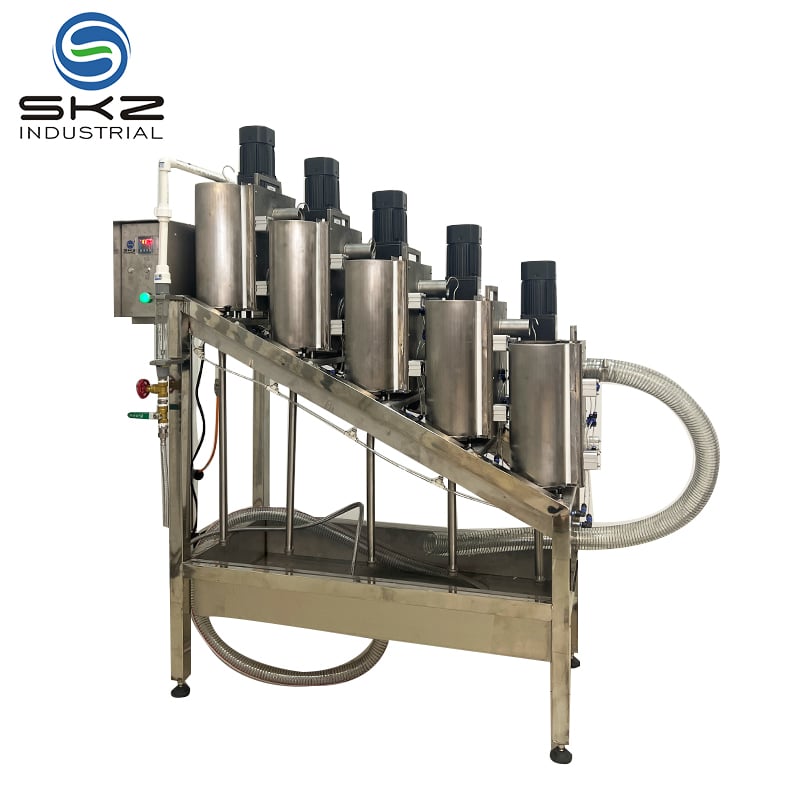

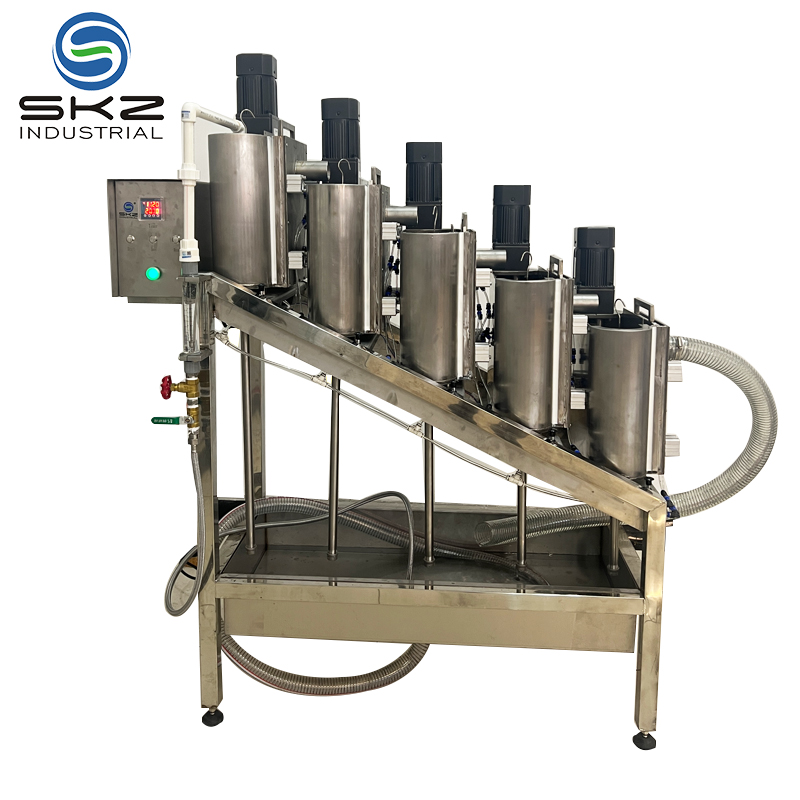

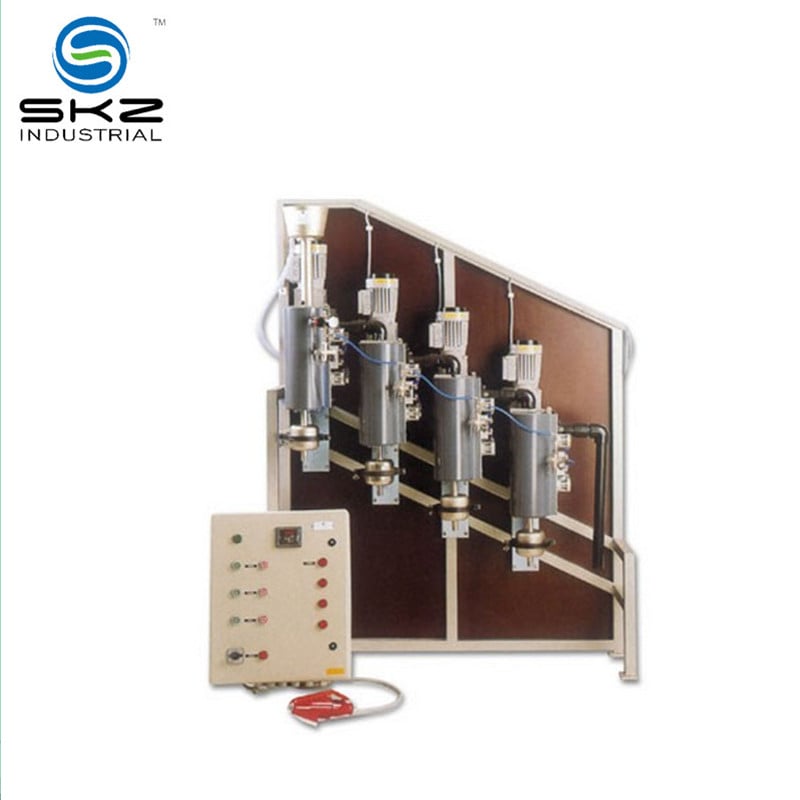

SKZ1024 Bauer Fiber Classifier Φ100
Description
1. 4-stage ladder-type sieving system with 4 standard mesh sizes (14/28/48/100mesh) for multi-size fiber classification.
2. Adjustable agitator speed (580±50–1400 r/min), fixed stable flow rate 11±0.5L/min, 0–9999min customizable screening timer.
3. Full stainless steel (0Cr18Ni9) build, integrated control cabinet, complete industrial lab unit .
This professional pulp fiber sieving tester is a fully integrated industrial laboratory unit designed for accurate multi-grade fiber classification and standardized pulp component analysis, delivering stable and repeatable testing performance for paper manufacturing and pulp research.
It adopts a premium 4-stage ladder-type sieving system equipped with four standard mesh sizes of 14, 28, 48 and 100 mesh. The layered sieving structure enables precise multi-size fiber classification, effectively separating pulp fibers of different specifications. This multi-stage design achieves comprehensive fiber grading detection, meeting diverse pulp component testing and quality analysis requirements.
The tester supports flexible and precise parameter adjustment to adapt to various testing standards. It features an adjustable agitator speed ranging from 580±50 to 1400 r/min, paired with a fixed stable flow rate of 11±0.5 L/min to ensure consistent testing conditions. Additionally, a customizable 0–9999 minutes screening timer allows users to set targeted testing durations for diversified experimental and production testing needs.
Built entirely with high-quality 0Cr18Ni9 stainless steel, the device boasts outstanding corrosion resistance, structural stability and long service life. Equipped with an integrated control cabinet, it features an all-in-one compact structure with centralized and convenient operation. Optimized for professional industrial laboratories, this complete unit realizes standardized, efficient and automatic pulp fiber sieving, serving as essential equipment for pulp quality inspection and fiber performance research.
Specifications
| Sieve grading number | 4 |
| Sieve differentiator capacity | 10L |
| Agitator speed | 580 ± 50 rev / min, adjustable speed max 1400r / m |
| Sieve mesh | 14mesh, 28mesh, 48mesh, 100mesh |
| Flow velocity | 11 ± 0.5L / min |
| Screening time | 0~999min |
| Main material | Stainless steel (0Cr18Ni9) |
| Dimensions | 1780mm(long)×520mm(width)×1680mm(high) |
| Weight | 130Kg |
