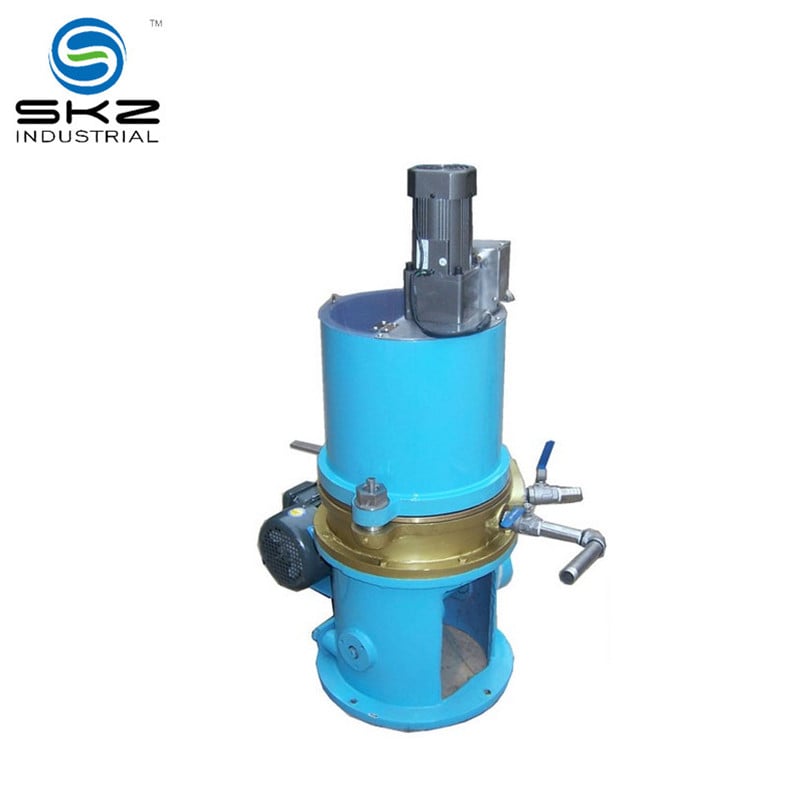

SKZ1023 Lab Fiber Classifier Φ300
Description
1. Large-volume single cylinder, max 14.1372L capacity.
2. Dual motion design: 250 r/min stirring speed + 1400 times/min vibration frequency for efficient screening.
3. Interchangeable screen plate apertures: 0.2/0.25/0.3/0.4mm; stainless steel & copper main construction compliant with international standards.
This professional pulp screening tester is engineered for high-efficiency and standardized pulp impurity screening and particle separation. Adopting an optimized structural design, it delivers stable, uniform and precise screening performance, perfectly meeting daily quality testing and experimental analysis demands in pulp and paper laboratories.
Equipped with a large-volume single cylinder, the device boasts a maximum capacity of 14.1372L. The enlarged cylinder volume supports large-batch pulp sample processing, effectively improving overall testing efficiency and avoiding repeated operations for conventional small-capacity screening equipment.
Featuring a premium dual-motion working design, it combines stirring and vibration functions to achieve thorough pulp screening. It runs at a stable stirring speed of 250 r/min and a high vibration frequency of 1400 times per minute. The dual cooperative motions ensure full dispersion and uniform screening of pulp samples, eliminating incomplete separation and greatly enhancing screening accuracy and efficiency.
The tester supports versatile interchangeable screen plates with multiple aperture specifications, including 0.2mm, 0.25mm, 0.3mm and 0.4mm options. It can flexibly adapt to different pulp screening standards and diverse sample detection requirements. The main structure adopts stainless steel and copper materials, featuring sturdy construction, excellent durability and full compliance with international testing standards.
With large capacity, efficient dual-motion operation and flexible customizable configurations, this screening tester provides standardized and reliable testing results. It is an essential precision device for pulp impurity detection, sample classification and quality control in paper mills and professional research laboratories.
Specifications
| Cylinder diameter and height | 300mm × 300mm |
| Rotational speed of agitator | 250r / m |
| Vibration frequency | 1400 times / min |
| Screen plate open screening | 0.2mm，0.25m，0.3mm，0.4mm |
