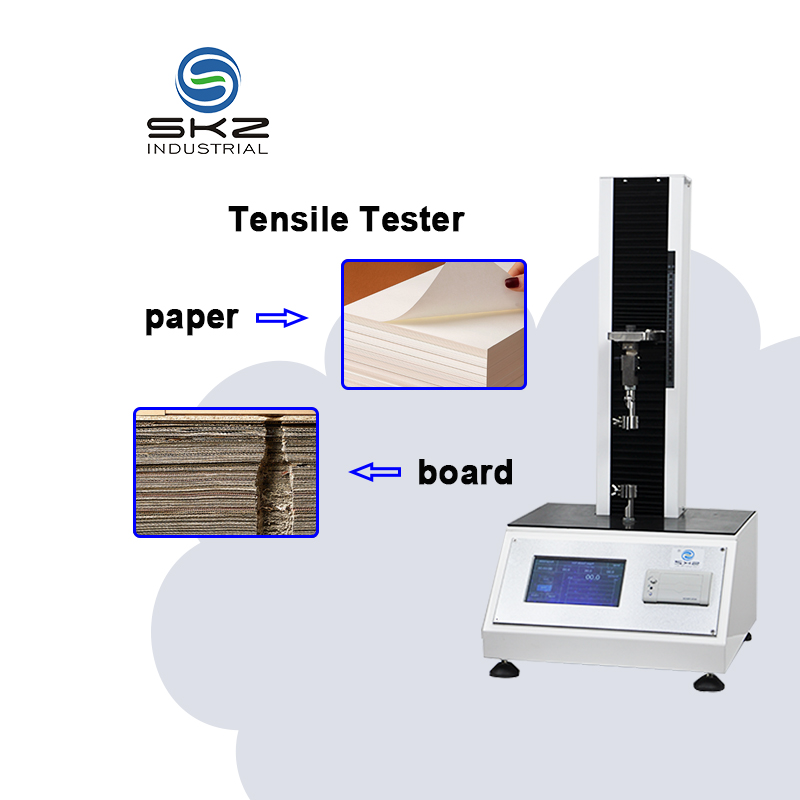

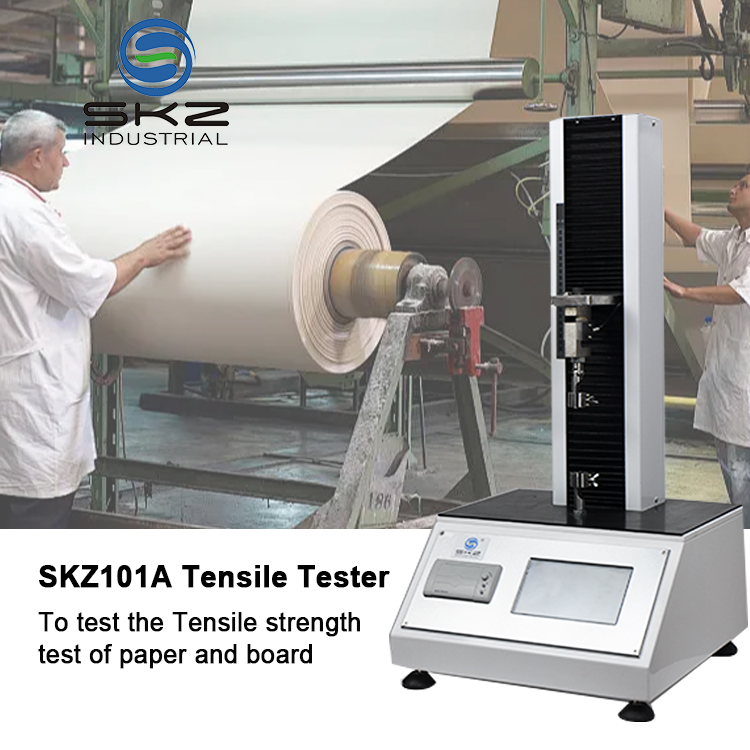

SKZ101A Tensile Tester
Description
1. Color touch screen display.
2.The test force can be adjusted in a wide range, stable and effectively.
3. Display test force, test speed and displacement at real time.
4. It can automatically return to the original position after test.
5. With limit position protection, over load protection and over current protect.
6. Equipped with mini printer, test report can be printed
This high-performance testing machine is designed for precise and automated material testing, integrating intelligent operation, real-time data monitoring and comprehensive safety protection. It delivers stable, efficient and reliable testing results, suitable for various professional testing and quality inspection scenarios.
Adopting a premium color touch screen display, the device offers a clear, intuitive and user-friendly operating interface. It simplifies parameter setting and operation procedures, allowing operators to complete testing configuration and data viewing effortlessly with smooth and responsive touch control.
The machine supports wide-range adjustable test force with outstanding stability and effectiveness. The flexible force adjustment adapts to diverse material testing requirements, ensuring consistent and accurate force output throughout the test process and avoiding data fluctuation caused by unstable pressure.
Real-time data monitoring is available for core testing indicators including test force, test speed and displacement. All key testing data is dynamically displayed on the screen during operation, enabling users to track the whole testing process and capture every subtle data change instantly.
Featuring an automatic reset function, the device can intelligently return to its original position right after each test. This automatic design saves manual reset time, greatly improves continuous testing efficiency and reduces human operation errors.
Built with multiple safety protection mechanisms, it includes limit position protection, overload protection and overcurrent protection. These all-round safety designs effectively prevent equipment damage and testing failures caused by abnormal operation, ensuring long-term stable and safe operation of the machine.
Equipped with a built-in mini printer, the machine supports instant test report output after testing. Users can obtain complete and standardized test data reports directly, which facilitates data recording, sorting, archiving and quality traceability for daily testing work.
Specifications
| Max test force | 500N |
| Precision of the equipment | 1% |
| Measuring range | 1N - 500N |
| Relative error of indicating value | 1% |
| Resolution of test force | 1/200000 |
| Min reading value of deformation | 0.01mm |
| Speed range | 1 - 500mm/min |
| Stroke of crossbeam | 400mm |
| Loading mode | Electrically |
| Control mode | Micro - computer |
| Voltage (should connect to the ground) | AC 220V 50Hz |
| Power | 400W |
| Dimension of main machine | 490X470X920mm |
| Weight | 45kg |
