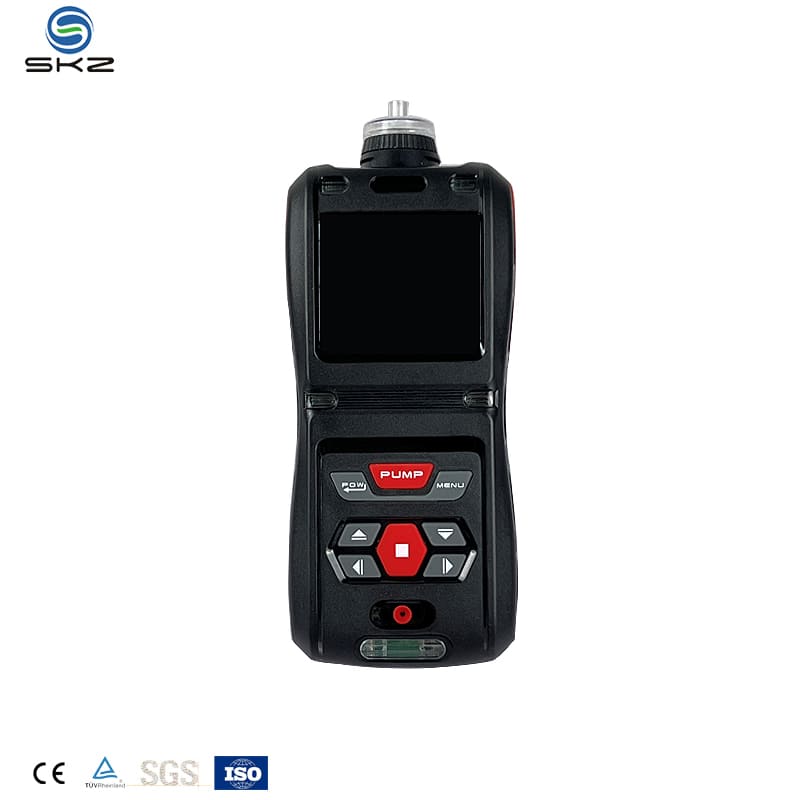

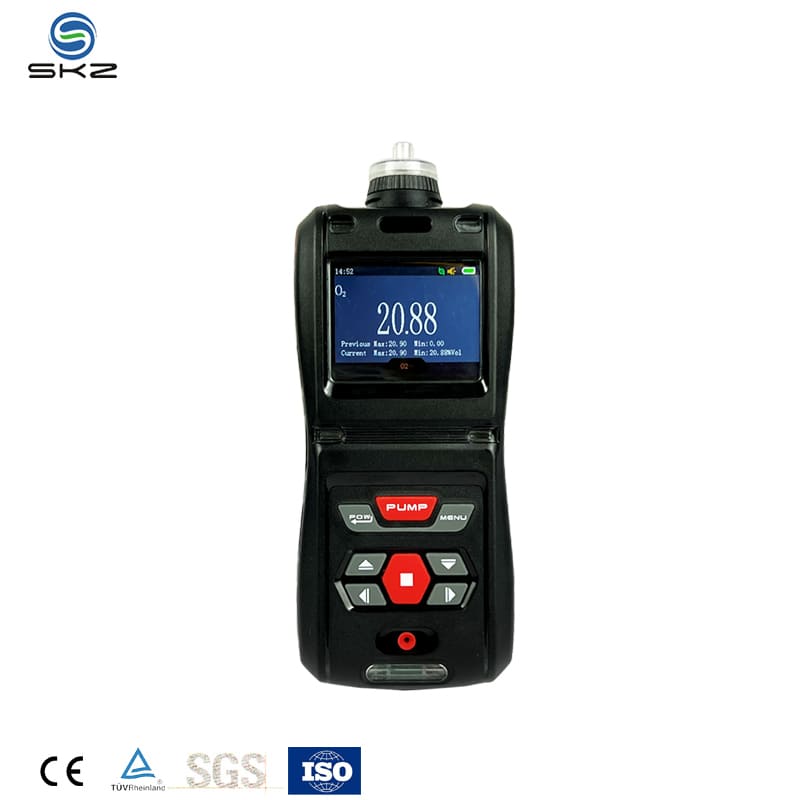

SKZ2050-5 toxic gas monitoring is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarm if the measurement exceeds the limit.
| Detection gas | Single or multiple as requested | Scope of detection | As requested |
| Resolution | As requested | Detection principle | Depends on the gas type and measure range |
| Sensor life | 2 years | Detection method | Built-in pump suction, flow rate 500ml/min |
| Display method | 2.5 inch 320X240 high-definition color screen display, 5-buttons operation | ||
| Detection accuracy | ≤±2%F.S | ||
| Linearity | ≤±2% | Repeatability | ≤±2% |
| Alarm method | Sound and light alarm, vibration alarm, visual alarm, sound and light + vibration + visual alarm, shut off the alarm | ||
| Response time | ≤20S | Recovery Time | ≤30S |
| Power supply | DC3.6V | battery capacity | 3.6VDC, 5500mA |
| Use environment | Temperature -20℃~+50℃ | Temperature measurement | -20℃~+120℃ |
| Relative humidity ≤0-99%RH | Accuracy: 0.5℃ | ||
| Humidity measurement | 0-100%RH, Accuracy 3%RH | data storage | Standard configuration of 100,000 data |

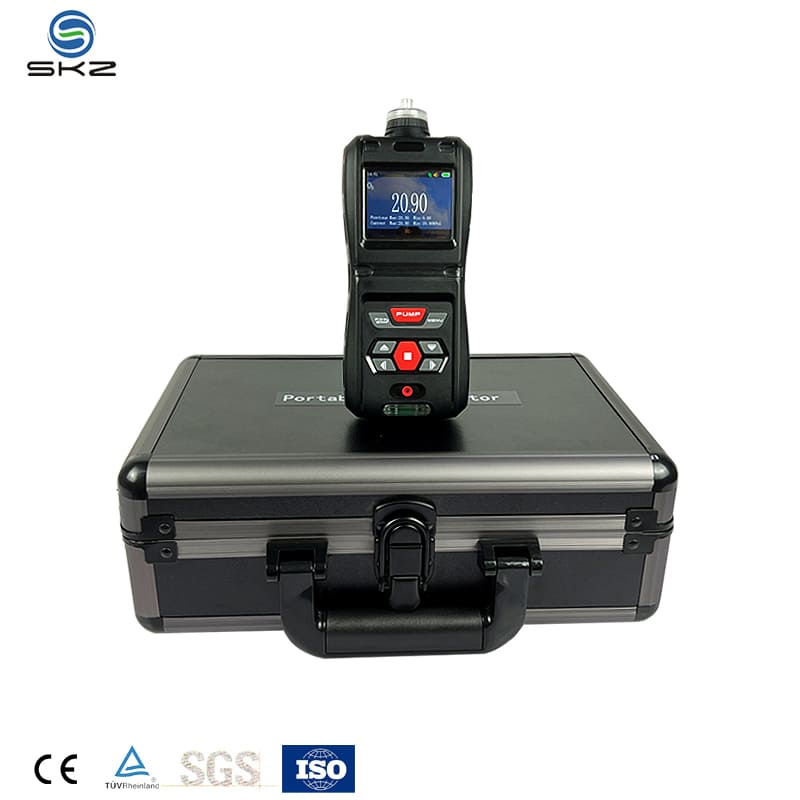

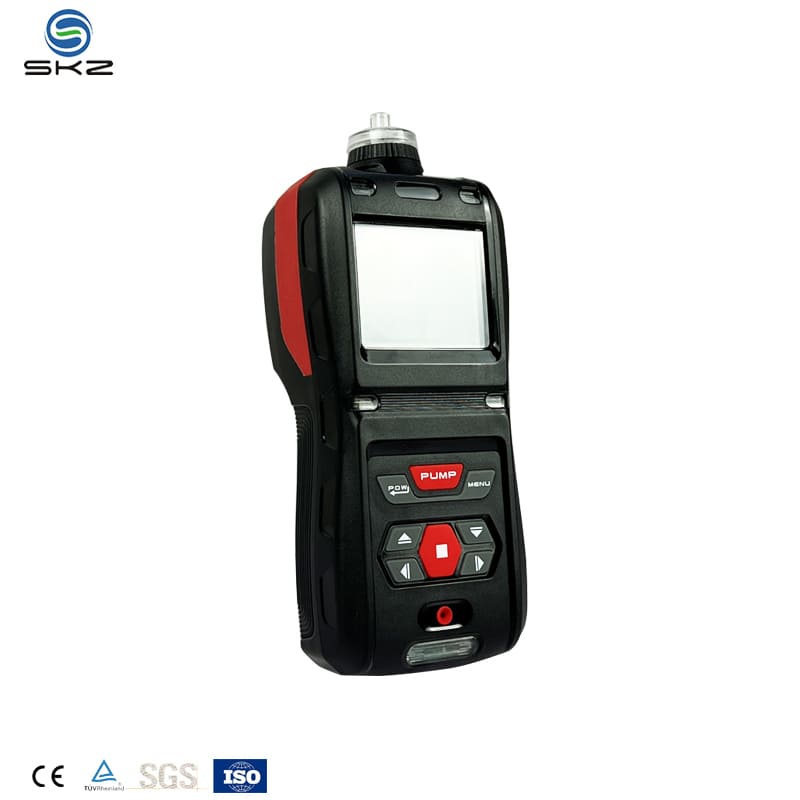

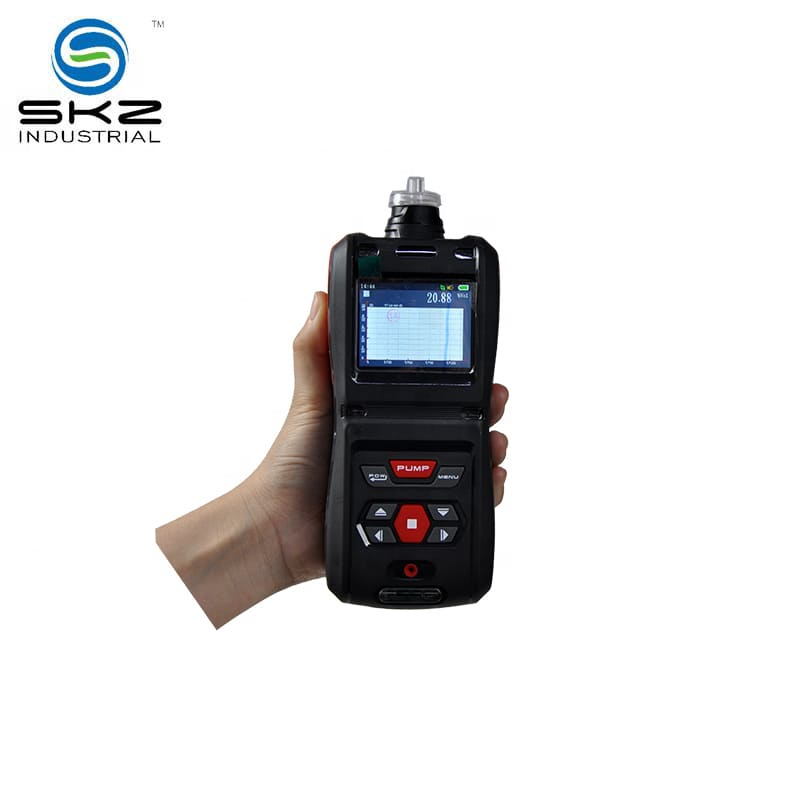

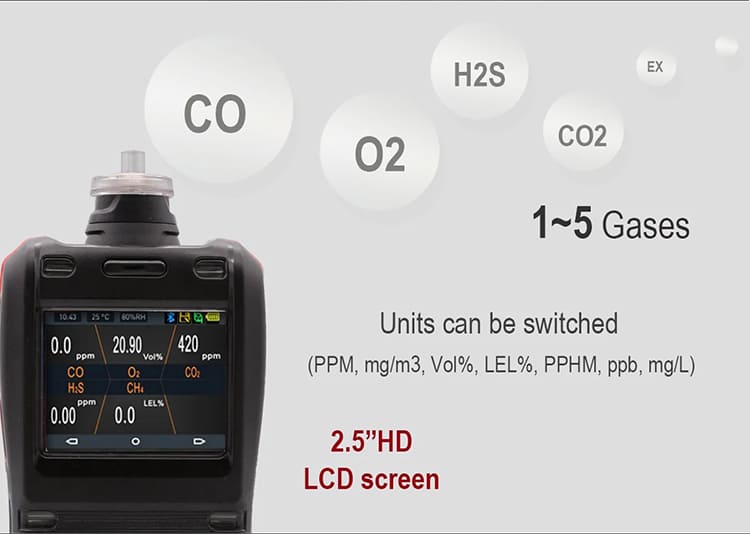

SKZ2050-5 industrial gas sensor adopts 2.5-inch high-definition color screen for real-time display, and adopts gas sensors of well-known brands in the industry.
It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.
Why Choose SKZ2050-5
Shipment
1000
Provide air, sea and shipping services according to customer needs
Provide fumigation-free plywood boxes or multi-layer cartons, wrapped with plastic film inside
Delivery within two weeks
Low minimum order quantity OEM
