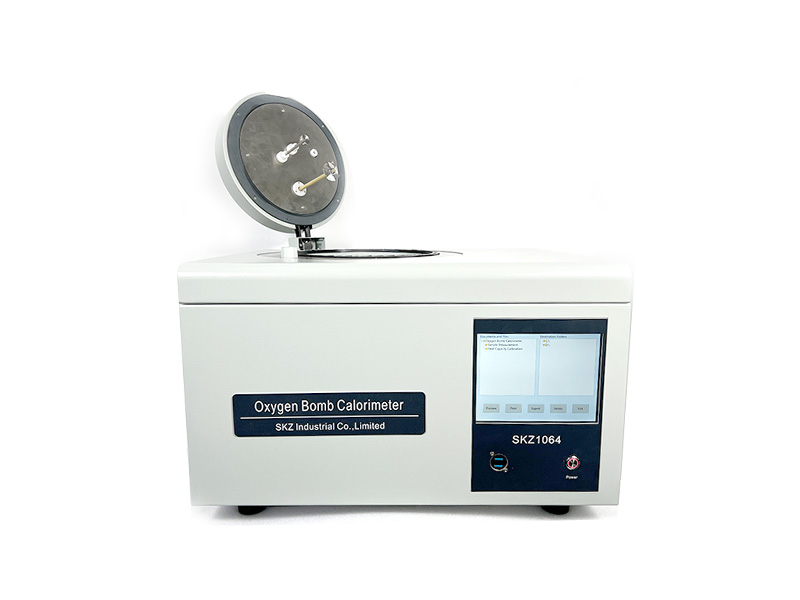

Oxygen bomb calorimeter can be used to measure the calorific value of solid or liquid samples, measuring samples in a closed container (oxygen bomb), oxygen-filled environment, the heat generated by combustion, the measurement results called the combustion value, calorific value , BTU and so on. Calorific value results have the value of determining other values to determine the quality of the sample as a basis for calculating the price (eg, coal), as well as physiology (eg, energy distribution in ecology, energy metabolism in animal nutrition studies, etc.), physical And the chemical conclusion.
| Heat capacity | 14000 J/K～15000 J/K |
| Measuring range | (10～35)℃ |
| Resolution | 0.001 K |
| Measurement accuracy | ± 60J/g |
| Repeatability error | ≤0.2% (Grade C) |
| Pressure endurance of bomb | 20 MPa |
| Temperature measurement range | 10 ℃～28 ℃ |
| Relative humidity | ≤85% |
| Power | AC 220V±5%, 50 Hz |
| Dimension | 600mm×480mm×460mm |
| No. | Name | Unit | Qty |
| 1 | Host (includes single chip, oxygen bomb, water jacket, water bucket, stirrer) | set | 1 |
| 2 | Oxygen bomb head holder | set | 1 |
| 3 | Oxygen bomb seat | set | 1 |
| 4 | Temperature sensor | pc | 1 |
| 5 | Thermometer（0-50℃） | pc | 1 |
| 6 | Stopper for thermometer (silica gel stopper 2 #) | pc | 1 |
| 7 | Ignition wire (Ф0.1 Nickel-Chromium wire) | m | 10 |
| 8 | Crucible | p | 2 |
| 9 | Discharging valve | pc | 1 |
| 10 | Oxygen decompression device | pc | 1 |
| 11 | Oxygen pipe | pair | 1 |
| 12 | O type seal ring（φ20×2.4mm） | pc | 5 |
| 13 | O type seal ring（φ8×1.9mm） | pc | 5 |
| 14 | O type seal ring（φ6×1.9mm） | pc | 5 |
| 15 | Airproof ring (largest O type) | pc | 2 |
| 16 | Benzoic acid | pc | 10 |
| 17 | Water aspirator | pc | 1 |
| 18 | Printing paper | roll | 1 |
| 19 | Stopping ring for thermometer (1#) | pc | 4 |
| 20 | Fuse 2A (Φ5×20) | pc | 2 |
| 21 | Silicon stopper (7#) | pc | 1 |
