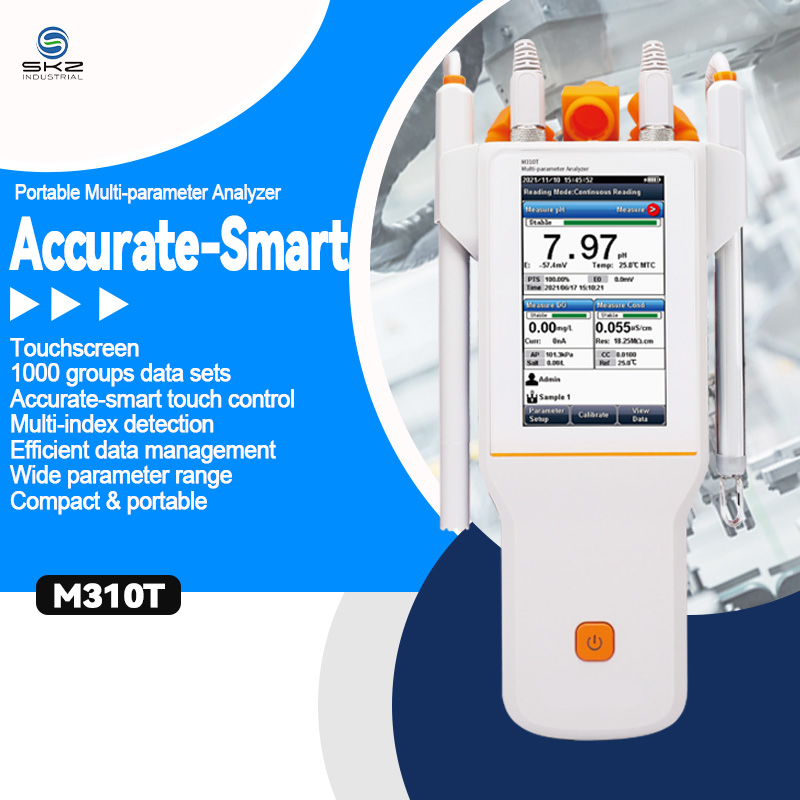

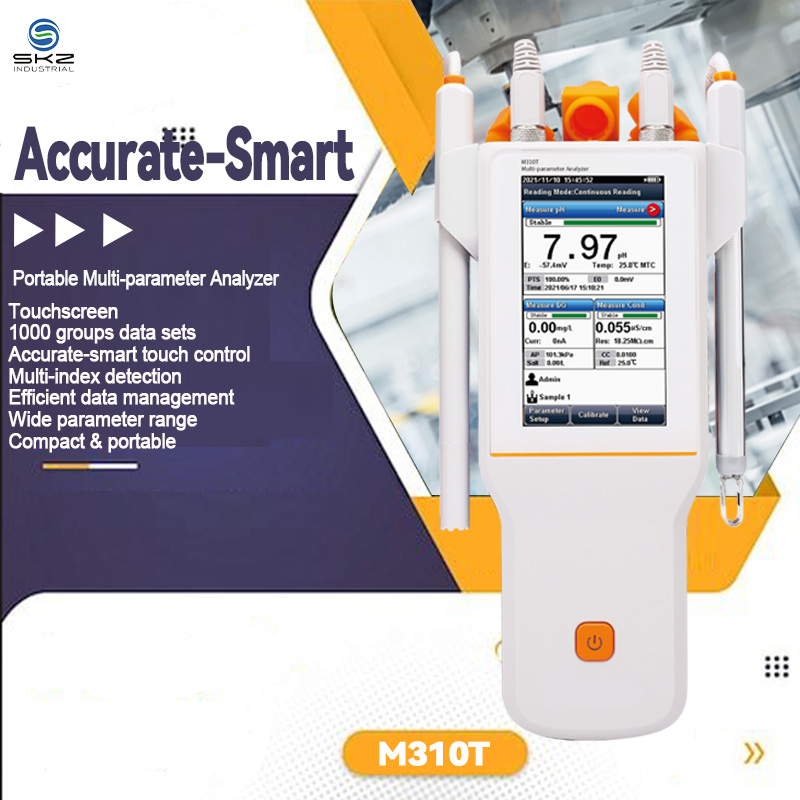

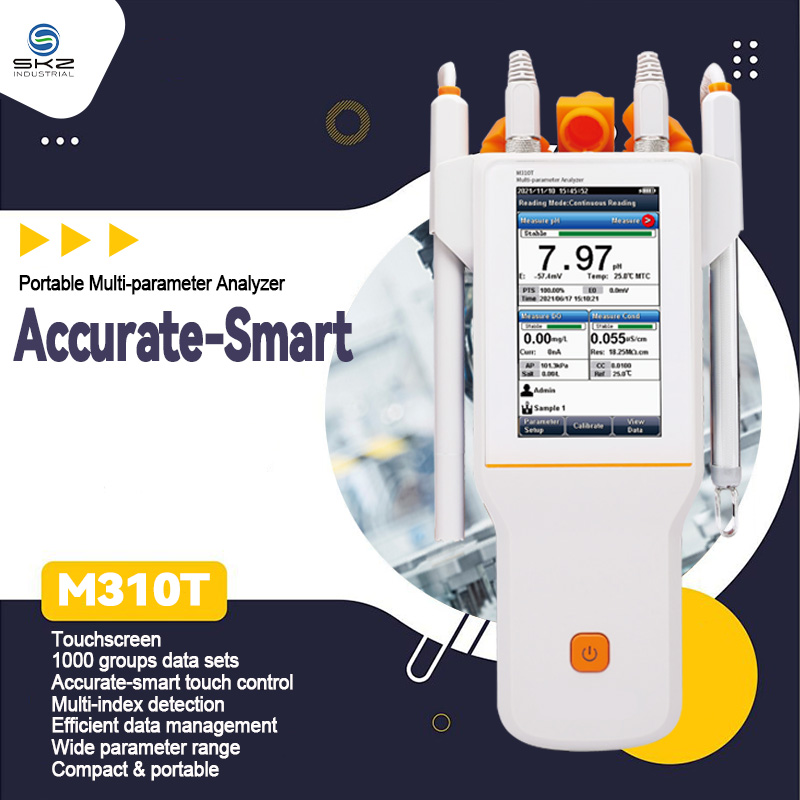

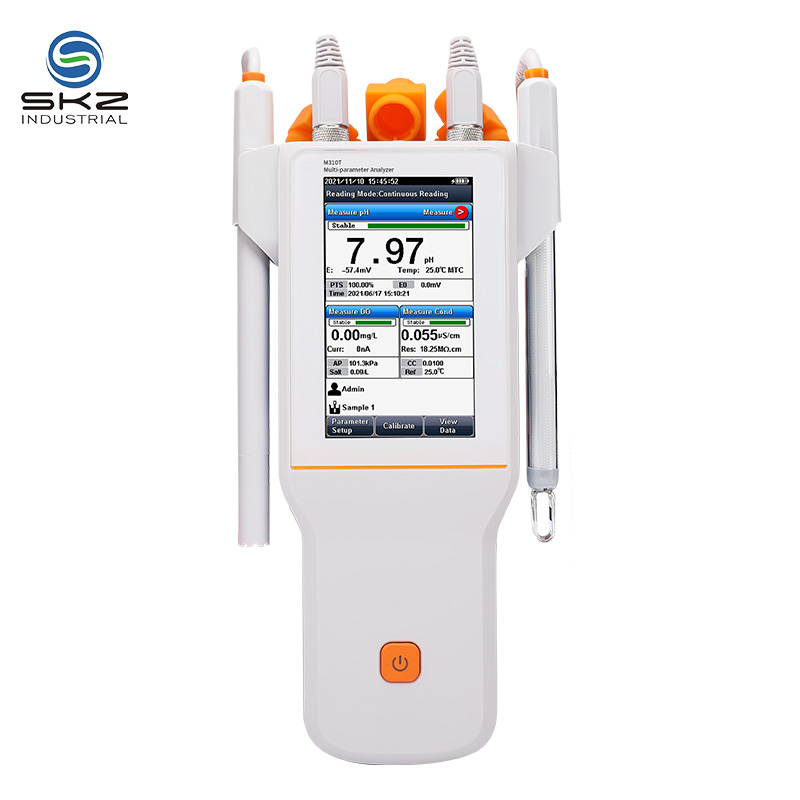

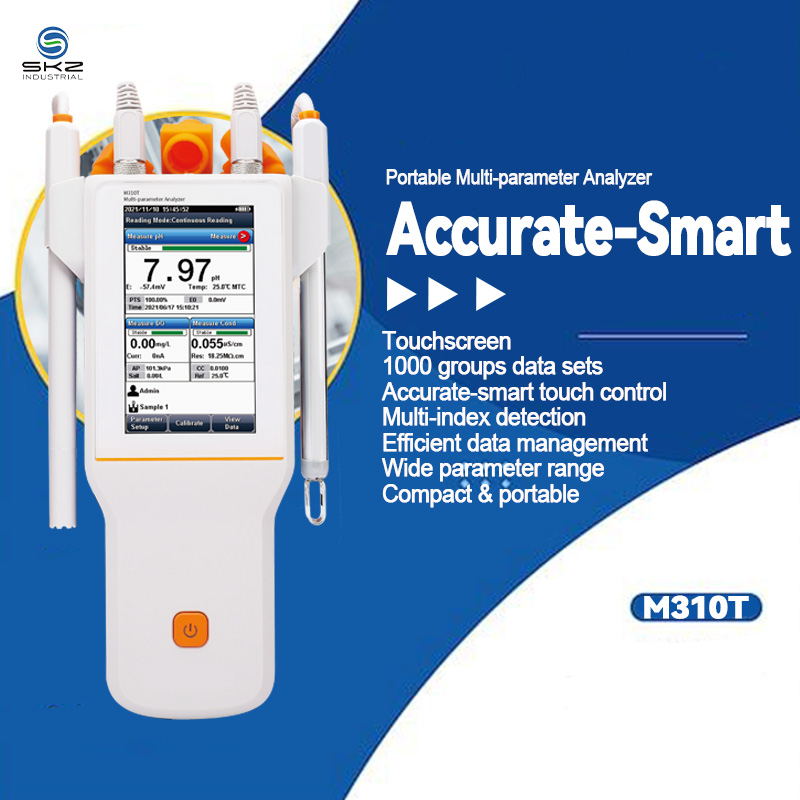

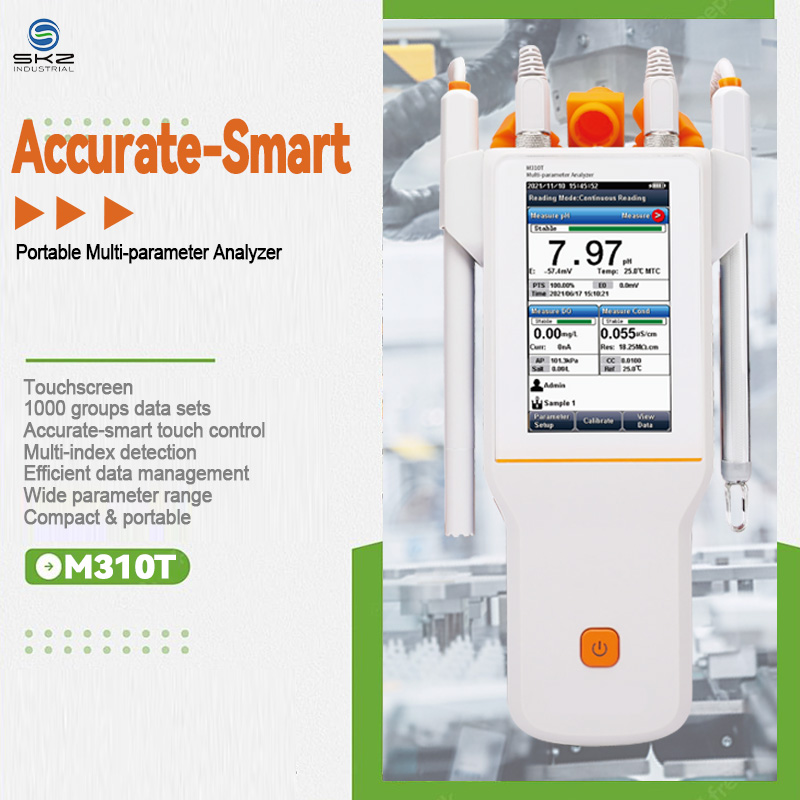

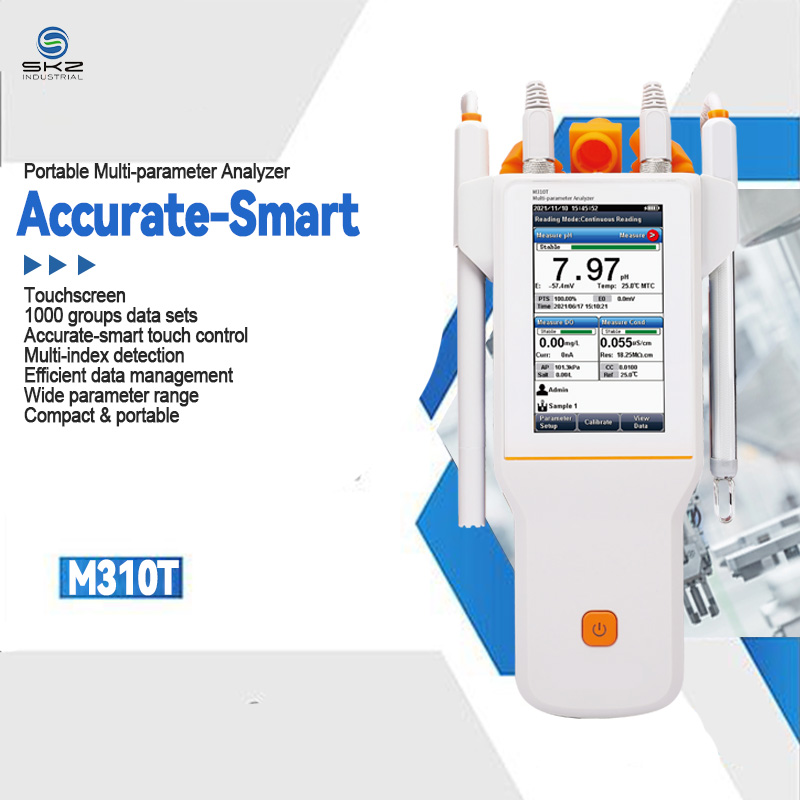

M310T
Description
1. Accurate-Smart design
2. pH range -2.00~20.00pH, accuracy ±0.01pH
3. pX range -2.00~20.00pX, accuracy ±0.01pX
4. mV range -2000.0~2000.0mV, accuracy ±0.3mV or ±0.1%
5. ISE range 1.000E-9~9.999E+9, accuracy ±0.5%
6. EC range 0.000~1000mS/cm, accuracy ±1.0%FS
7. DO range 0.00~50.00ppm, accuracy ±0.10ppm
8. Temp range -5~110℃, accuracy ±0.2℃
9. Touch screen operation
10. 1000 sets data storage
11. Printer & PC connection
12. Auto power-off
1. 【Accurate-Smart Design, Mid-to-High End Lab】Accurate-Smart design for mid-to-high-end labs and QC.
2. 【-2.00~20.00pH Wide Range】pH range -2.00~20.00pH with ±0.01pH accuracy.
3. 【-2.00~20.00pX Measurement】pX range -2.00~20.00pX with ±0.01pX accuracy.
4. 【-2000.0~2000.0mV High Accuracy】mV range -2000.0~2000.0mV with ±0.3mV or ±0.1% accuracy.
5. 【1.000E-9~9.999E+9 ISE Measurement】ISE range 1.000E-9~9.999E+9 with ±0.5% accuracy.
6. 【0.000~1000mS/cm Conductivity】EC range 0.000~1000mS/cm with ±1.0%FS accuracy.
7. 【0.00~50.00ppm Dissolved Oxygen】DO range 0.00~50.00ppm with ±0.10ppm accuracy.
8. 【-5~110℃ Temperature】Temp range -5~110℃ with ±0.2℃ accuracy and ATC.
9. 【Capacitive Touchscreen, Glove Operation】Capacitive touch screen supports gloved operation.
10. 【1000 Data Sets Storage】Stores 1000 sets of data.
11. 【PC/Printer Data Export】Supports printer and PC data export.
12. 【Auto Power-Off】Auto power-off function.
Specifications
| Model | M3 10T | |
| Parameters | pHECIISE/DO/Temp.(mV/pX/RathfivityTDS/Sal/DO Satrafion) | |
| pH | Range | -2.00 to20.00pH |
| Resou | 0.1,001pH | |
| Accuracy | ±0.01 pH | |
| Calitrafion Points | Up to 5 | |
| ndard Customization | Yes | |
| Calbrafion Reminder | Yes | |
| Standard Recognition | NIST,GB ,USA and DIN buffers | |
| Sb bpe Limit | Yes | |
| mV | ange | -2000.0 to 2000.0mV |
| Re Resolifion | 0.1mV | |
| racy | ±0.3mV/ or ±0.1% | |
| pX | Range | -2.00 to 20.00pX |
| Resolufion | 0.1,0.01pX | |
| Accura | ±0.01 pX | |
| Calitration Points | Up to 5 | |
| ISE | Range | 1.000e-9 to 9.999e+9 |
| Units | md/L,mmdlL,g/L,mgt,p.g/L,ppm,ppb | |
| Resolufi ution | Up to 4 sigrifcant digits | |
| Accuracy | ±0.5% | |
| Calitration Points | Up to 5 | |
| Conductivity | Range | 0.000 μ S/cm to 1000 m S/cm |
| Resolution | 0.001 μ S/om mirimum, various with range selecfion | |
| Accuracy | ±1.0% FS | |
| Refen Temperature | 20, 25℃ | |
| Cafibration Points | Up to3 | |
| Standaro ndard Recognitian | 84 μ S/cm, 1413 μ S/cm, 12.88mS/cm | |
| Resistivy | Ra ange | 5.00Ω·cm-20.00 MΩ cm |
| Res solution | 0.01Ω·cm minimum. | |
| Accuracy | ±1.0%FS | |
| TDS | Range | 0.00ppm-300 ppt |
| Res esolufion | 0.01mg/L minim um,3 sigrafcant digits | |
| 4 ccuracy | ±1.0%FS | |
| Salinay | Range | 0.0-80.0 ppt |
| Resolution | 0.1ppt | |
| Accuracy | ±2pot | |
| Dissolved Oxygen Concentration | Sensor Type | Polargraphic |
| Range | 0.00 to 50.00 ppm | |
| Resoution | 0.01mg/L | |
| Accuracy | ±0.10ppm | |
| Calitrafion Points | Air·saturated water or zero point | |
| Barometric Compensation | Yes | |
| Manual Safirity Factor Correction | Yes | |
| Saturation | Range | (0.0 to 300.0)% |
| Resolution | 0.10% | |
| Accuracy | ±2.0% | |
| Temperature | Range | -5 to 110℃,23.0 to 230 ℉ |
| Unit | ℃, ℉ | |
| Resouufion | 0.1 | |
| Relafive Accuracy | ±0.2 | |
| Moasurement | Reading Mode | Auta-Read (Fast, Medium, Slow), Timed, Cortinuous |
| Reading Prompls | Reading,Stable,Locked | |
| Temp. Compen pensaion | ATC,MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Feahres | Yes | |
| Inputs | pH Electrode | BNC(Q9) |
| DO wth Temp. Probe | 4·pin aviation conneclor | |
| Conducfity with Temp. Probe | 5·pin aviation connector | |
| Outputs | USB | PC,printer |
| Display options | Badlight | Yes |
| Auto Shutdown | 300,600,1200,1800,3600sec.,off | |
| IP Raling | IP65 | |
| Date and Time | Yes | |
| General | Power | Rechargeable Lithium bail ery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 90x255x40mm | |
| Waight | 500g(1.1lb) | |
