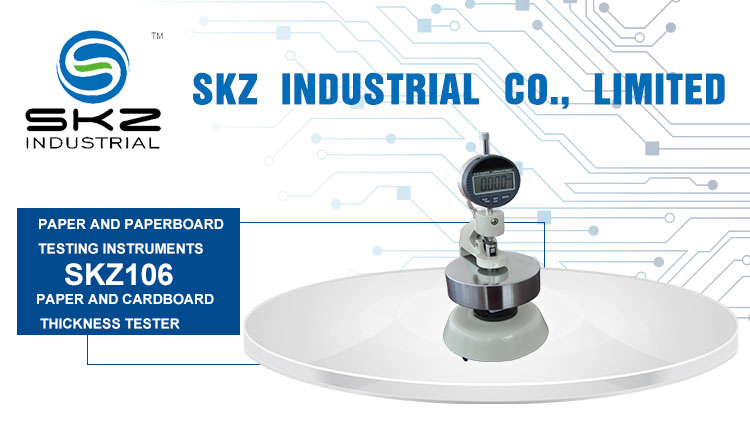

Cardboard Thickness Tester | SKZ106B
The tester is applying to test the thickness of cardboard.
Standard:ISO 534: Paper and board -Determination of thickness, density and specific volumeISO 438:1980. Paper -- Determination of bulking thickness and apparent densityGB/T451.3: paper and board-Determination of thicknessProduct DescriptionTechnical ...
Description
Standard:
ISO 534: Paper and board -Determination of thickness, density and specific volume
ISO 438:1980. Paper -- Determination of bulking thickness and apparent density
GB/T451.3: paper and board-Determination of thickness
Product Description
Technical Parameters
Measure range |
0-8mm |
Indicator display range |
0-25mm |
Accuracy |
0.01mm |
Measuring area |
200mm² (dia. 16.6mm) for paper board |
|
1000 mm² for corrugated board |
Pressure |
100 Kpa, for paper board |
|
20Kpa, for corrugated board |
Value error |
±2.5um or ±0.5% |
Dimension |
80×120×120 (mm) |
Weight |
10kg |
